304, 304L, 316, 316L, etc.
Wire diameter: 0.025mm - 1.800mm
Mesh size: 2 mesh - 2800 mesh (0.02 ~ 10.9mm)
Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave
Width: 1.0m, 1.2m, 1.5m, 1.8m, 2.0m (custom widths available)
Length: 30m or 50m (custom lengths available)
Wear-resisting, Heat-resisting, Acid-resisting, Corrosion-resisting, Tear-resisting
Mainly used for separation and filtration in petroleum, chemical, food, pharmaceutical, environmental protection, mining, aerospace, paper-making, electronic, and metallurgy industries.
| Specification Of Plain Weave | |||||
|---|---|---|---|---|---|
| Mesh | Wire diameter(mm) | Aperture(mm) | Mesh | Wire diameter(mm) | Aperture(mm) |
| 2 | 1.8 | 10.9 | 60 | 0.15 | 0.273 |
| 4 | 1.2 | 5.15 | 80 | 0.12 | 0.198 |
| 6 | 0.8 | 3.433 | 100 | 0.10 | 0.154 |
| 8 | 0.6 | 2.575 | 120 | 0.08 | 0.132 |
| 10 | 0.55 | 1.990 | 140 | 0.07 | 0.111 |
| 12 | 0.50 | 1.616 | 150 | 0.065 | 0.104 |
| 14 | 0.45 | 1.362 | 160 | 0.065 | 0.094 |
| 16 | 0.40 | 0.188 | 180 | 0.053 | 0.088 |
| 18 | 0.35 | 1.060 | 200 | 0.053 | 0.074 |
| 20 | 0.30 | 0.970 | 250 | 0.04 | 0.061 |
| 30 | 0.25 | 0.596 | 300 | 0.035 | 0.049 |
| 40 | 0.21 | 0.425 | 350 | 0.03 | 0.042 |
| 50 | 0.19 | 0.318 | 500 | 0.025 | 0.0385 |
Pricing for wire mesh depends on many factors, such as wire diameter, mesh counts, weight per rolls, etc. If the specification is definite, then the price depends upon the quantity required. Generally speaking, the larger the quantity, the better the price. The most common way pricing is provided is by the square foot or square meter (depending on your routine).
Yes, of course. All the specifications on this page can be produced. Besides, we can also customize and produce according to your given specifications.

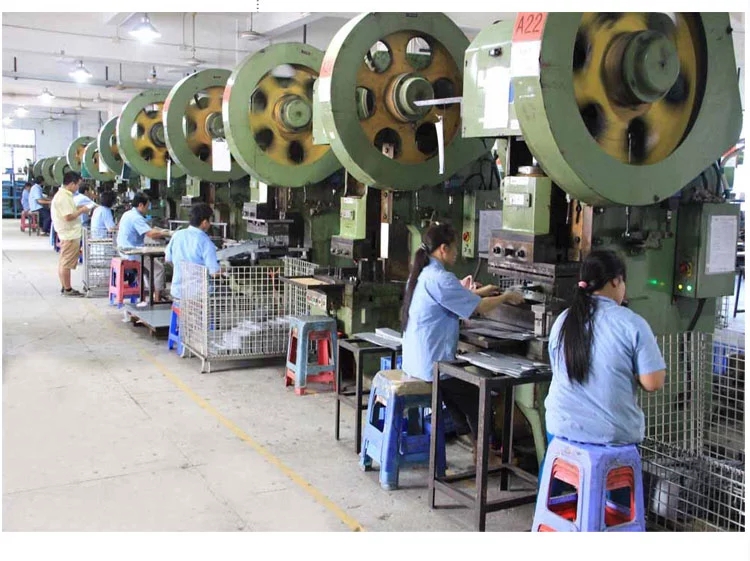

We have our own quality inspection team responsible for operating professional quality inspection machines, such as the Wire diameter detector, Tensile strength detector, Chemical material spectrometer, etc. We guarantee you the quality.
Providing samples is no problem for us. You can tell us directly, and we are able to offer samples for items readily available from stock.
If the items are in stock, 1 roll is our minimum order quantity (MOQ).
The standard materials include high-quality stainless steel options such as 304, 304L, 316, 316L, and other custom alloys depending on your specific project requirements.
