Premium structural materials and customized floor solutions engineered for maximum durability, friction, and structural safety.
The strategic role of checker steel sheets in global infrastructure, industrial modernization, and mechanical engineering.
Industrial checker steel sheets, alternatively known as chequered plates, diamond plates, or durbar floor plates, represent a foundational component of safety-critical engineering infrastructure worldwide. Built with raised angular patterns, these sheets deliver high-friction slip-resistant surfaces necessary to secure factories, transit fleets, offshore installations, and municipal architecture.
Modern procurement departments navigate complex, volatile markets to source metal products that balance mechanical load capacity with long-term atmospheric durability. In Europe and North America, strict worker safety laws (OSHA, HSE) mandate slip-resistant floor plates in all elevated work structures, which drives massive demand for ASTM A36 and Grade 304/316 stainless steel checker plates. At the same time, massive urban development projects across South America, the Middle East, and Asia-Pacific rely heavily on hot-dipped galvanized carbon steel (DX51D, DX52D, Q235B) to protect municipal utilities from extreme environmental exposure.
Global logistics challenges and volatile raw material pricing are driving sourcing specialists to establish direct factory partnerships. Successful industrial buyers prioritize suppliers capable of offering extensive custom processing, including precise laser-cutting to size, customized bending, structural punching, and advanced pickling and oiling to prevent transit oxidation.
Chinese steel production facilities are globally recognized for unmatched industrial scale, highly optimized raw material access, and advanced metallurgical technologies. Located alongside crucial shipping hubs like the Port of Ningbo-Zhoushan, manufacturers leverage direct access to integrated smelting and downstream processing clusters. This vertical integration significantly limits raw material transit delays, reduces processing waste, and provides reliable cost control.
Ningbo-based manufacturers utilize advanced processing equipment like automated continuous hot-rolling mills, state-of-the-art hot-dip galvanizing lines with precise thickness controls, and heavy-duty cold-rolling lines. This technological setup allows factories to achieve tight dimensional tolerances, customized patterns (such as standard teardrop, diamond, or customized multi-bar layouts), and consistent surface coatings. This makes Chinese manufacturers key strategic partners for multinational OEMs, heavy infrastructure contractors, and global steel wholesalers alike.
A complete guide to international steel standards, mechanical grades, surface treatments, and application classifications.
| Material Category | Common International Grades | Standards Applied | Yield Strength (MPa) | Corrosion Resistance | Primary Industrial Applications |
|---|---|---|---|---|---|
| Mild Carbon Steel | Q235B, Q345B, A36, S235JR, S355JR | ASTM A36, GB/T 700, EN 10025 | 235 – 355 Min | Low (Requires coating/oiling) | Warehouse floors, structural steps, truck beds, machinery ramps |

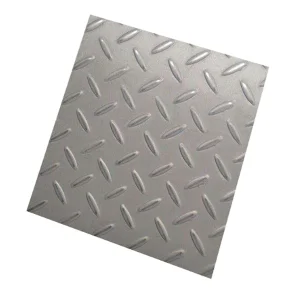

| Galvanized Steel | DX51D+Z, DX52D+Z, S250GD+Z, Z140-Z275 | EN 10346, ASTM A653 | 250 – 300 Min | Medium to High (Zinc protection) | Outdoor pedestrian bridges, urban drainage covers, marine ports |

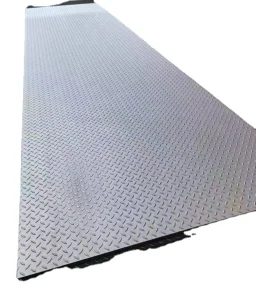

| Stainless Steel | SUS304, SUS316, SUS316L, 316Ti, 321 | ASTM A240, JIS G4305 | 205 – 240 Min | Excellent (Acid & sea-water proof) | Chemical processing plants, food production facilities, marine vessels |
| Aluminum Alloys | 1050, 1100, 3003, 5052, 5083, 7075 | ASTM B209, GB/T 3880 | 110 – 275 Min | High (Self-passivating oxide) | Aviation platforms, lightweight transport, vehicle step plates |
By applying a thick molten zinc layer (Z100 to Z275 coatings), this treatment creates an electrochemical barrier. It prevents steel oxidation and rust in highly humid, coastal, or mildly chemical industrial zones.
Embossed patterns are designed to maximize directional friction. Raised projections provide excellent traction for rubber soles, tires, and mechanical tracks, greatly reducing workplace slips and falls.
Uncoated hot-rolled and cold-rolled carbon steel sheets receive custom passivating chemical flushes and rust-preventative oil coatings. This ensures plates remain in perfect, ready-to-use condition throughout ocean shipments.
From maritime transport corridors to hazardous chemical plants: where and why specific alloys are utilized.
Heavy-duty transport systems rely on checker plates to handle continuous heavy loads and vibrations. Standard 8x4 and 4x8 mild steel checker plates (3mm to 6mm thickness) are widely used for trailer beds, warehouse loading ramps, step wells, and forklift transit paths. High structural yield strength prevents deformation, while the embossed surface keeps heavy cargo secure during transport.
Corrosive chemical vapor and constant exposure to industrial fluids make safety a challenge in chemical plants. In these environments, ASTM standard 300-series stainless steel checkered plates (such as 304, 316, and 316L) are the industry standard. Their high chromium and nickel content prevents pitting and corrosion, ensuring safety platforms and access walkways remain structurally sound over decades of use.
Sea salt spray, high humidity, and continuous moisture create highly corrosive conditions on marine vessels and offshore platforms. For these setups, engineers specify 5052 and 5083 anti-slip aluminum plates or hot-dipped galvanized steel sheets (Z275 coating). These materials balance lightweight structural profiles with excellent galvanic corrosion resistance, keeping walkways and ship stairs safe and durable.
Exploring advanced metallurgy, green steel initiatives, and next-generation anti-rust coatings.
Modern engineering continues to push for lighter structural designs. Historically, increasing load capacity required using thicker carbon plates, which added deadweight to structures, vehicles, and vessels. Today, the steel industry is adopting high-strength, low-alloy (HSLA) alternatives, like S355MC or specialized Q345-grade checker plates. These materials achieve comparable load-bearing performance at a 20% to 30% reduction in thickness. This helps transit systems save fuel, makes construction easier, and reduces overall material shipping costs.
Global environmental regulations (like the EU's REACH and CBAM) are changing finishing processes in modern steel mills. Traditional hexavalent chromium passivation treatments are being phased out in favor of eco-friendly trivalent chromium chemical passivations. Additionally, leading mills are investing in green steel production methodologies, utilizing clean hydrogen-arc furnaces and scrap steel recycling to reduce the overall carbon footprint of finished checker steel products.
Verifiable manufacturing capability, state-of-the-art facilities, and long-term global supply stability.
Ningbo Puppet Steel Co., Ltd. is a professional Steel Sheet Manufacturer | Cold Rolled, Hot Rolled & Galvanized Steel Supplier committed to providing high-quality steel products and customized metal solutions for customers worldwide. Serving industries such as construction, infrastructure, manufacturing, automotive, energy, home appliances, and industrial equipment, the company has built a strong reputation for reliable products and consistent service.
Located in Ningbo, China, Puppet Steel operates advanced processing and manufacturing facilities equipped with modern production lines and precision quality inspection systems. The company specializes in a comprehensive range of steel products, including cold rolled steel sheets, hot rolled steel sheets, galvanized steel sheets, galvalume steel sheets, prepainted steel sheets, carbon steel sheets, structural steel sheets, and customized steel processing solutions.
With extensive industry experience, the company offers flexible OEM and customized manufacturing services to meet various project requirements. From material selection and cutting to surface treatment and packaging, every production stage is carefully managed to ensure product consistency, dimensional accuracy, and long-term performance. Strict quality control procedures are implemented throughout the manufacturing process to comply with international standards and customer specifications.
Puppet Steel focuses on delivering durable, corrosion-resistant, and cost-effective steel products suitable for demanding applications in both domestic and international markets. The company maintains long-term partnerships with contractors, distributors, wholesalers, fabricators, and industrial manufacturers across North America, Europe, Southeast Asia, the Middle East, and other global regions.
Driven by innovation, quality, and customer satisfaction, Ningbo Puppet Steel Co., Ltd. continuously invests in technology upgrades and production efficiency improvements. Through competitive pricing, stable supply capacity, timely delivery, and professional technical support, the company strives to become a trusted global partner for steel sheet manufacturing and metal material solutions.
Expert technical insights regarding selection, specification, logistics, and design of checker steel plates.
The load capacity is primarily determined by base plate thickness (excluding pattern height), steel grade (such as Q235B or Q345B), and unsupported span width. For industrial flooring, engineers use standard structural load tables to calculate dynamic shear and static load limits.
Teardrop patterns offer clean, multi-directional anti-slip traction and are easy to sweep clean, making them ideal for commercial stairs and platforms. Five-bar patterns, common on aluminum plates, provide aggressive grip for heavy-duty environments, but can trap dirt more easily.
Yes, carbon steel grades like ASTM A36 and Q235B are highly weldable using standard industrial techniques (MIG, TIG, Stick). They can also be cut using laser, plasma, or waterjet systems without damaging the raised pattern.
Zinc coating weight directly affects service life. A Z140 coating (140g/m² total weight, both sides) is suitable for dry or indoor conditions. For harsh coastal, industrial, or highly humid outdoor environments, a thicker Z275 coating is recommended to delay rust formation.
Yes, all export batches are shipped with standard Mill Test Certificates (MTC) compliant with EN 10204 3.1. These documents detail the chemical composition, yield strength, tensile strength, and elongation statistics of the batch to ensure full project compliance.
To prevent white rust (zinc hydroxide) caused by trapped moisture, we apply post-galvanizing passivation, arrange tight waterproof packaging with desiccant packets, and ensure proper shipping container ventilation during transit.
