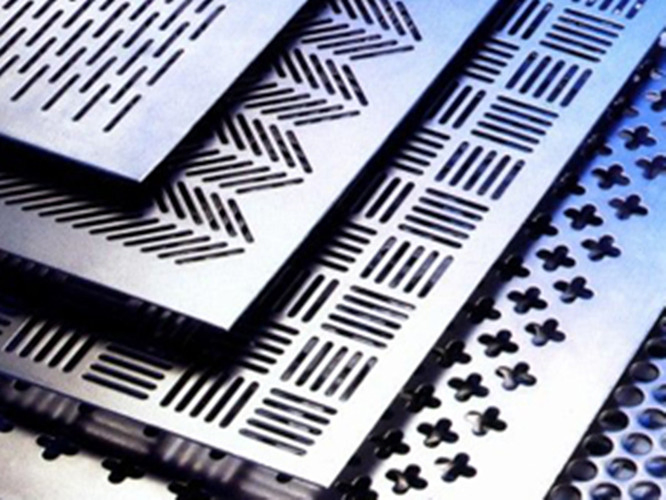

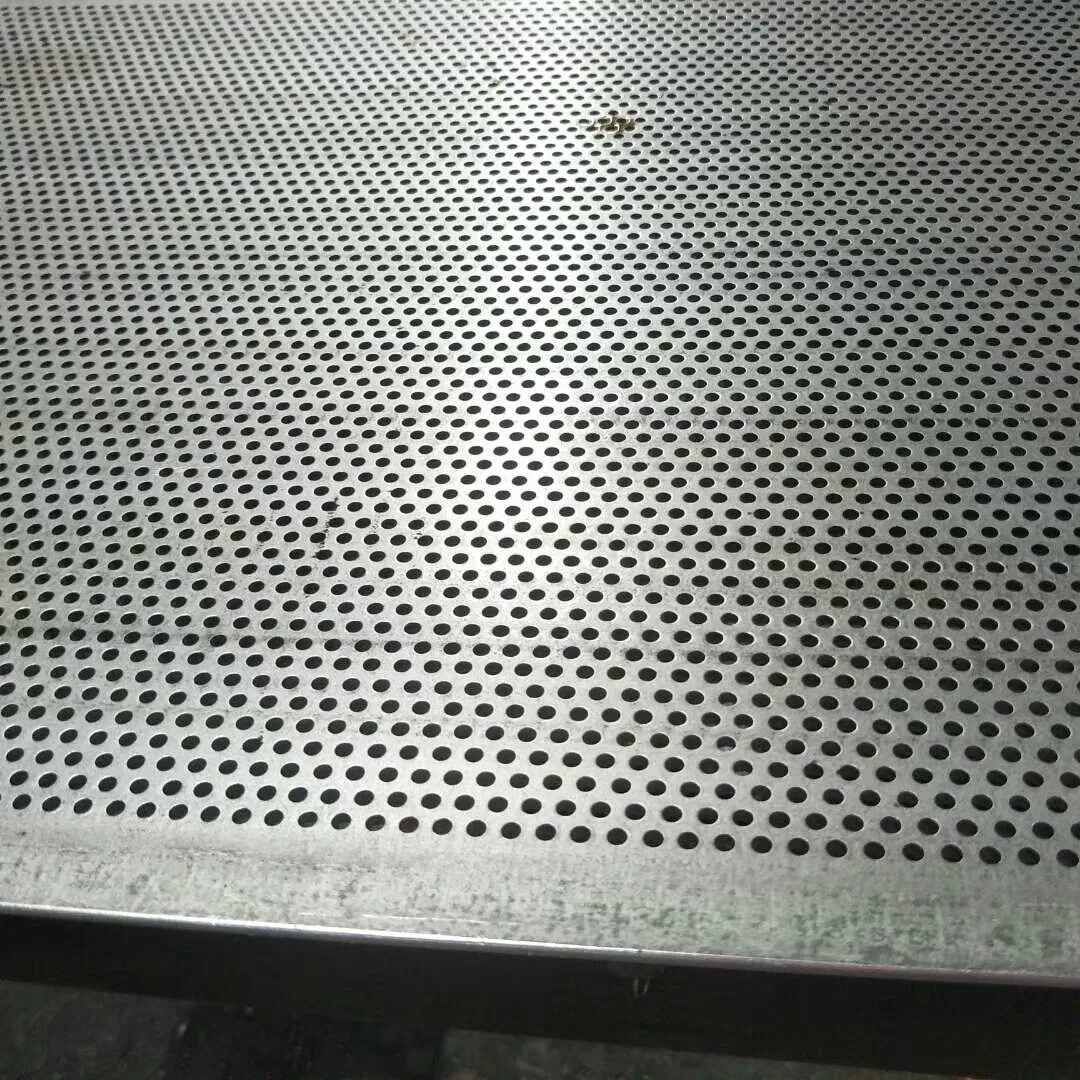

Perforated metal panel/punching hole mesh, punching mesh
Materials: Stainless steel plate, mild steel plate, galvanized steel plate, aluminum plates, al-mg alloy plate, copper plate, nickel plate.
Shape: Round hole, square hole, long square hole, hexagonal hole, triangle hole, the plum blossom hole, ichthyosisthe hole, scale hole and other different kinds of hole. Different shapes and types can be processed according to custom requirements.
Usage: For decoration, screening, separation, sifting, filtration, drying, cooling, cleaning and other specifications in civil construction, mechanical device protection, handicraft, cover, road, bridge, step etc.

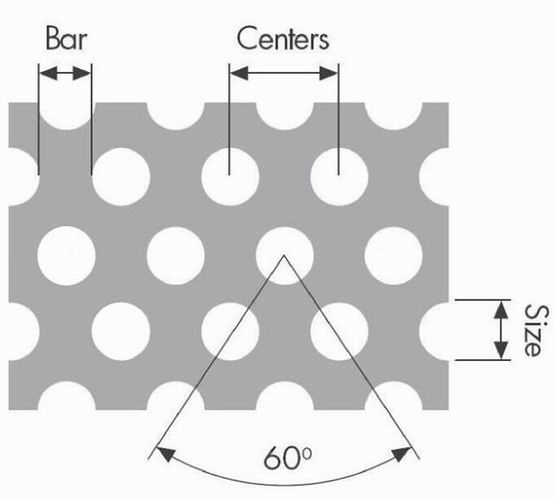

| Plate Material | Thickness of Metal | Hole Dia (mm) | Pitch (mm) | Sheet Width (m) | Sheet Length (m) | Porosity (%) |
|---|---|---|---|---|---|---|
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | |
| 1.5 | 5 | 2 | 1 | 2 | 35.39 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 |
