| Corrugated Sheet Specifications | |
|---|---|
| Description | Corrugated Sheet is also called pressure plate, mainly galvanized plate, and color plate rolled into a variety of forms. It is mainly used for industrial and civil construction, warehouses, and special constructions of large span steel structures for roofs, walls, and internal/external wall decorations. |
| Thickness | 0.105-0.8mm |
| Width | Before Corrugated: 762-1250mm, After Corrugated: 600-1100mm |
| Length | As require |
| Zinc Coating | Z30 - 275g/m2 |
| Top Paint | 8-35 Micron |
| Back Paint | 3-25 Microns |
| Basal Plate | GI GL PPGI |

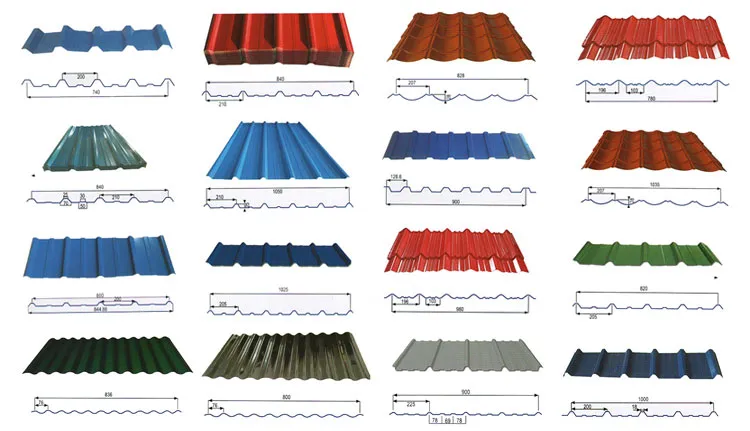

| Normal Roof shape | Wave shape, T shape |
| ID of Coil | 508/610MM |
| Surface Structure | Regular spangle, Minimum spangle, Zero spangle, Big spangle |
| Color | Blue, Green, Golden, Yellow |
| HRB | Soft Hard (<60), Medium Hard (60-85), Full Hard (85-95) |
| Surface Treatment | Oiled (O), Chromium (C), Phosphating (P), Spinpass Resistant to Fingerprints (AFP) |
| Export Packing | Dust-proof kraft sheet, Iron packing, Angle protective, Packing belt, Wood pallet |
| Category | Details |
|---|---|
| Package | 3 layers of packing: inside is kraft paper, water plastic film in the middle, and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve. |
| Monthly Output | 10000 tons |
| Remarks | Insurance is all risks and accept the third party test |
| Loading Port | Tianjin/Qingdao/Shanghai Port |
We supply sheets manufactured to international standards including ASTM, AISI, GB, JIS, DIN, and BS, utilizing materials such as SGCC, DX51D-DX53D, and G350-G550.
The available thickness ranges from 0.12mm to 1.0mm (standard corrugated ranges from 0.105mm to 0.8mm). The width is typically 762mm to 1250mm before corrugating, and 600mm to 1100mm after corrugating.
The top paint coating ranges from 8 to 35 microns (commonly 15 to 25 um), while the back paint thickness ranges from 3 to 25 microns (commonly 5 +/-2 um).
We employ standard seaworthy export packing which consists of 3 layers: inside dust-proof kraft paper, waterproof plastic film in the middle, and outside GI steel sheet wrapping secured with steel strips, angle protectors, and solid wood pallets.
Commonly requested colors include blue, green, golden, and yellow. We offer various spangle options such as regular spangle, minimum spangle, zero spangle, and big spangle, depending on project needs.

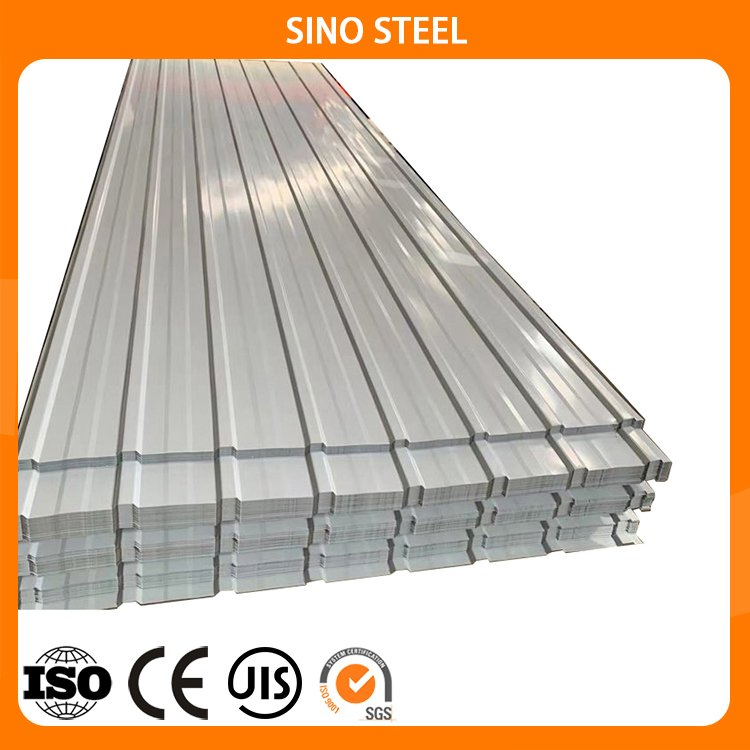

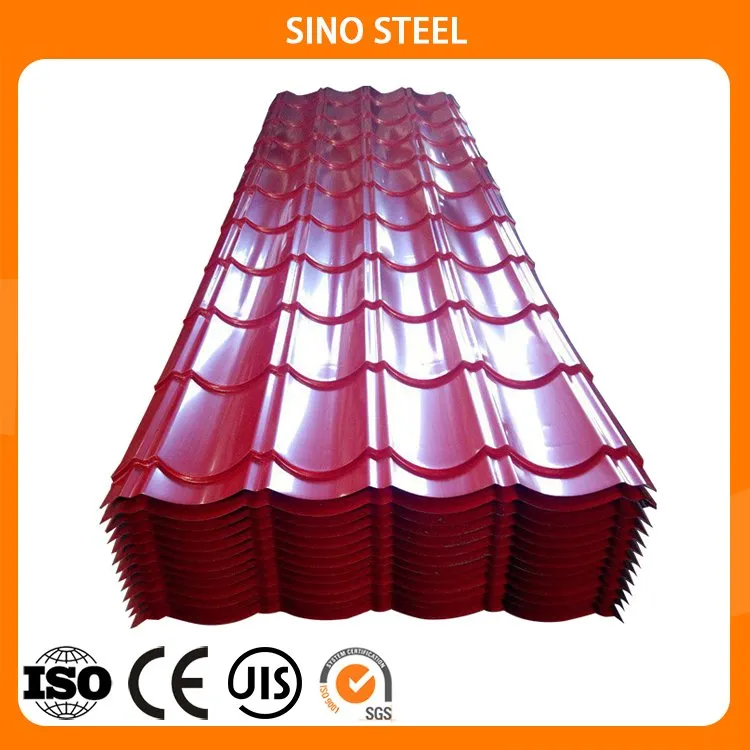

Yes, we provide customizable lengths and offer normal roofing shapes such as wave shape and T shape to fit different architectural designs.
