No cutting corners on zinc weight. Accept SGS testing.

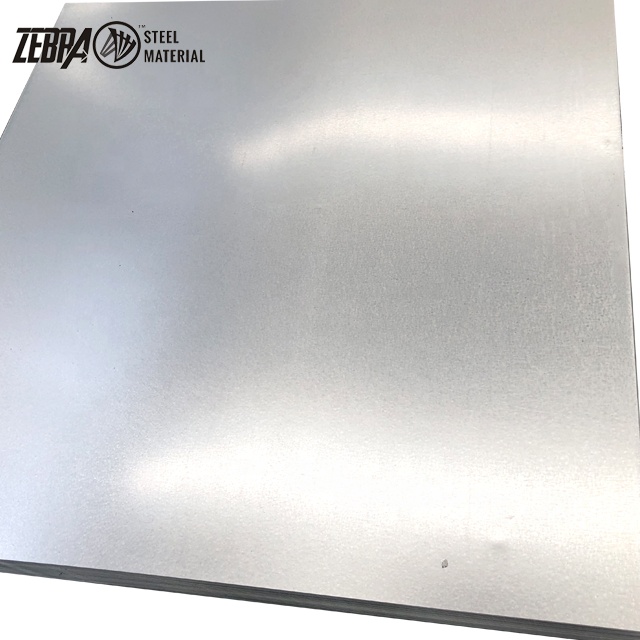

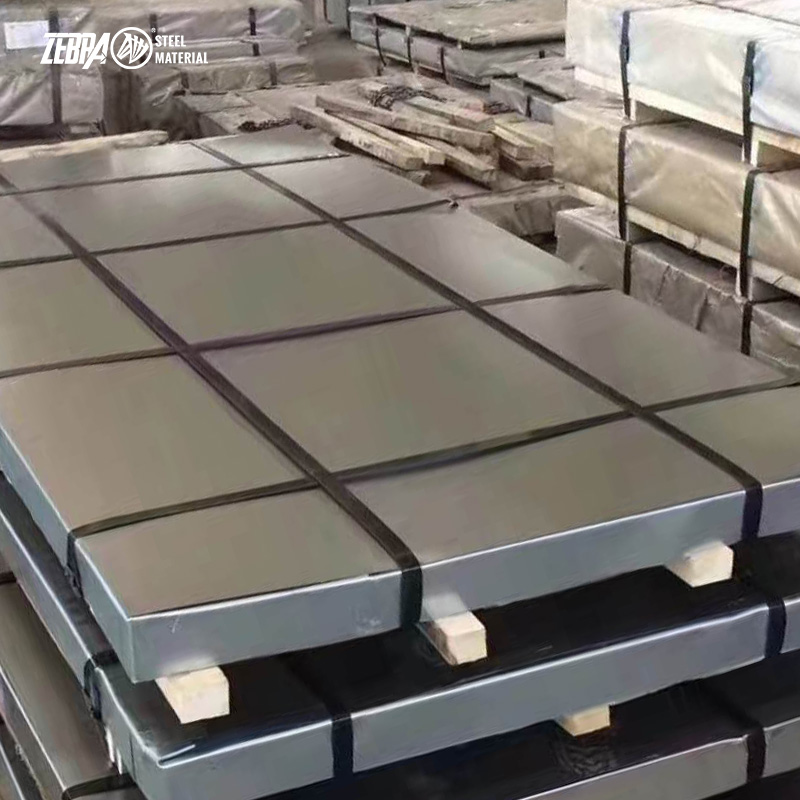

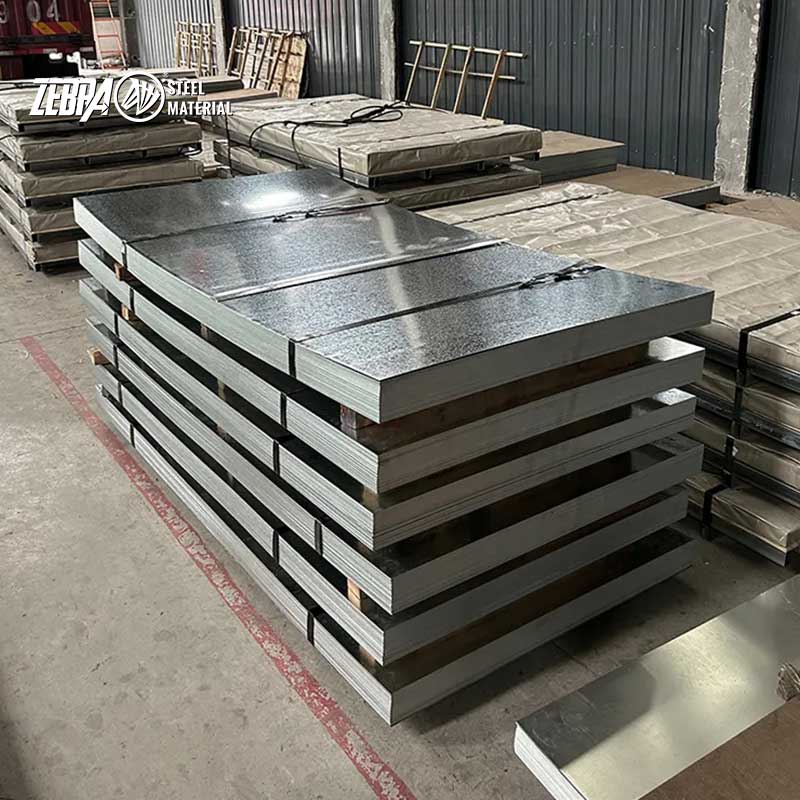

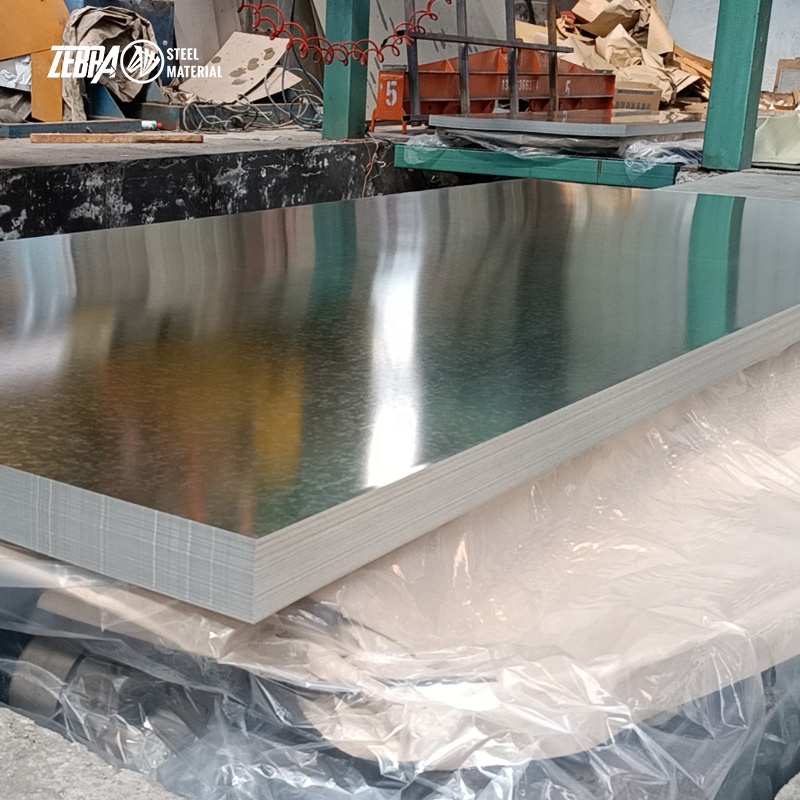

Hot dipped galvanized steel sheet is a type of steel product that has been coated with a layer of zinc to protect it from corrosion. The process involves immersing the steel coil into a bath of molten zinc, which forms a metallurgical bond between the zinc and the steel.
| Name | galvanized steel sheet |
| Zinc Coating | 20-275g/m2 |
| Thickness | 0.12-2.5mm |
| Width | 600-1250mm |
| Length | 50-12000mm |
| Surface Finish | Big/Regular/Zero/Bright |

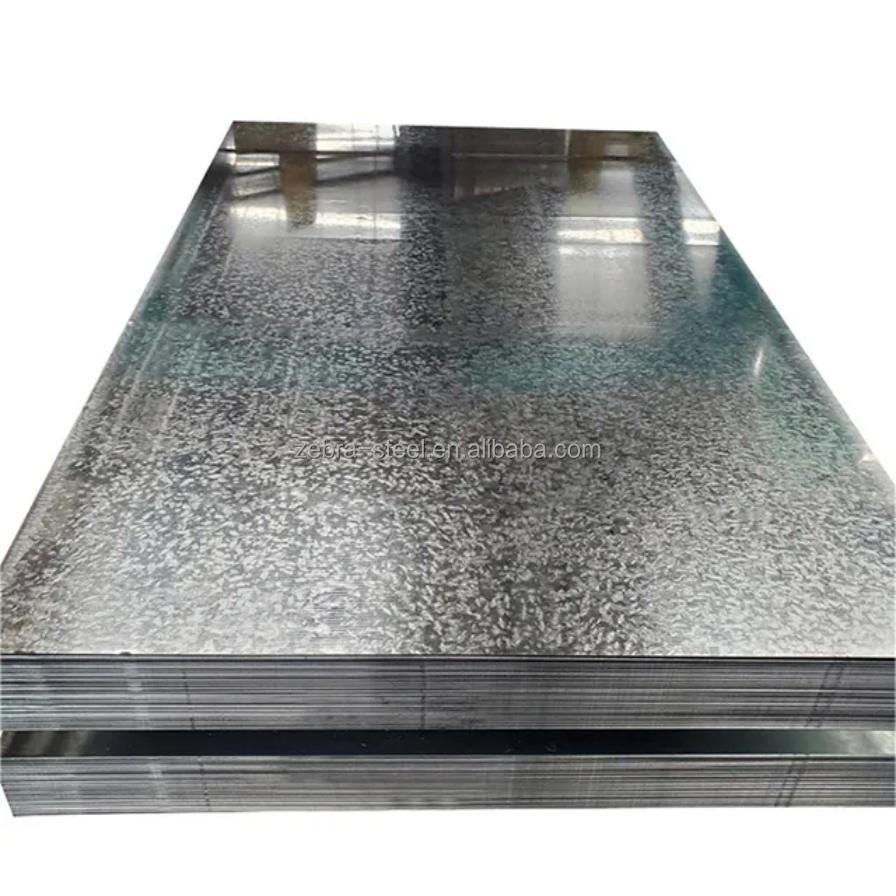

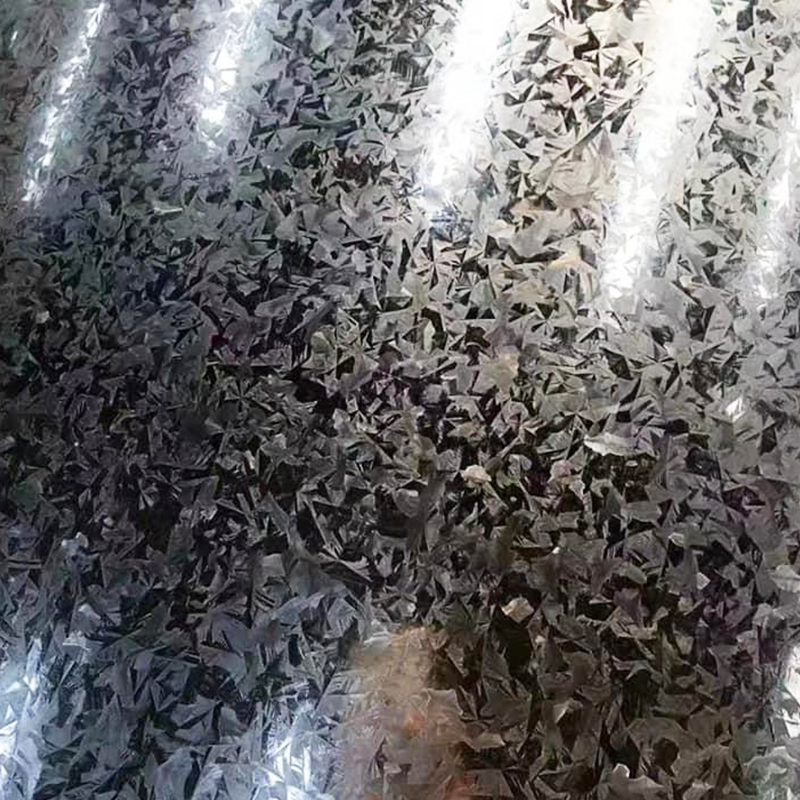

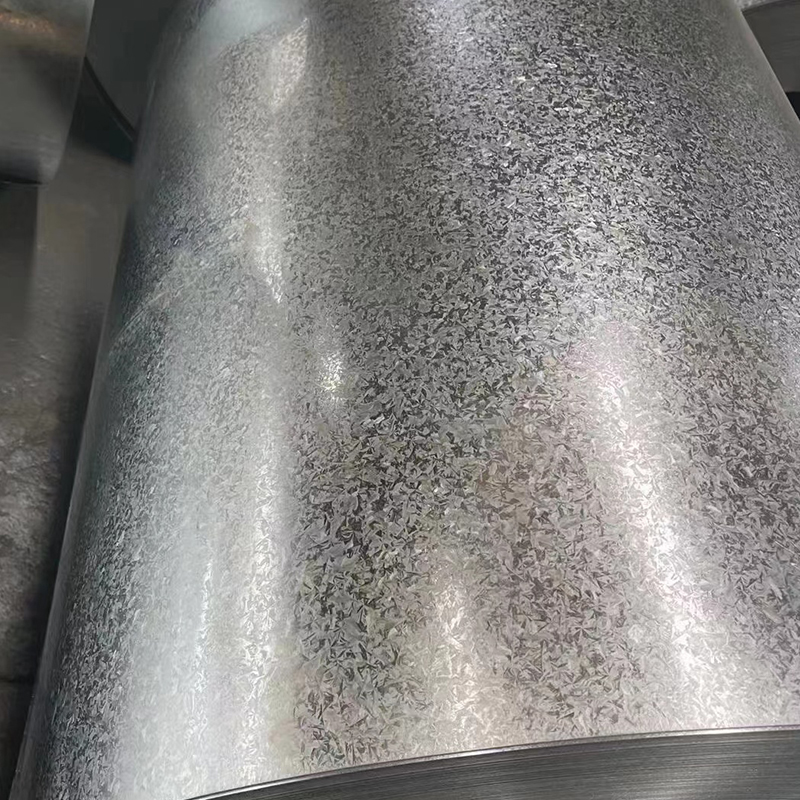

Natural solidification, with obvious zinc flowers on the surface and a larger diameter
Conventional zinc flower for hot-dip galvanizing

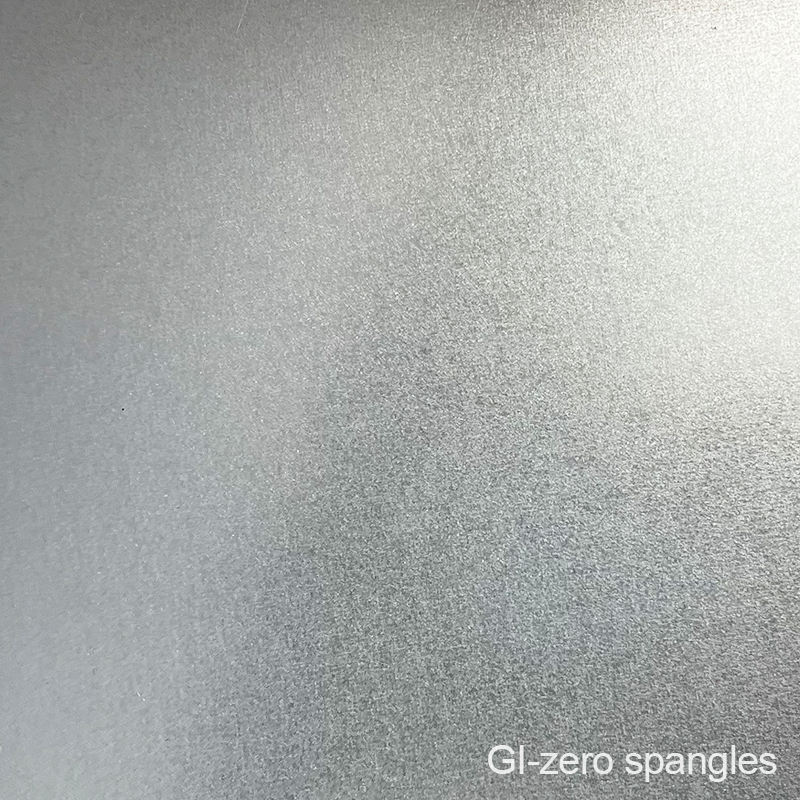

Smooth surface without obvious zinc flower structure
Has high gloss and surface smoothness, with better decorative and corrosion resistance properties
| Steel Grade | Coating | Yield (MPA) | Tensile (MPA) | Elongation (%) |
|---|---|---|---|---|
| DX51D | Z/ZF | -- | 270-500 | 20 |
| DX52D | Z/ZF | 140-300 | 270-420 | 22 |
| DX53D | Z/ZF | 140-260 | 270-380 | 26 |
| DX54D | Z/ZF | 140-220 | 270-350 | 30 |
| S220GD | Z/ZF | 220 | 300 | 18 |
| S250GD | Z/ZF | 250 | 330 | 17 |
| S280GD | Z/ZF | 280 | 360 | 16 |
| S320GD | Z/ZF | 320 | 390 | 15 |
| S350GD | Z/ZF | 350 | 420 | 14 |

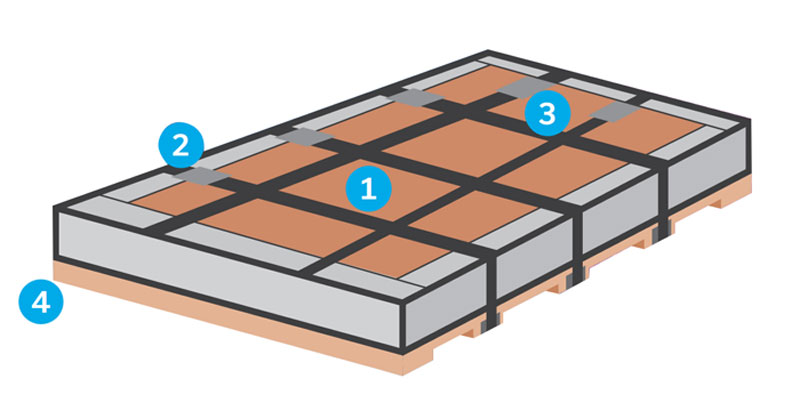

1. Metal protective ring
2. Waterproof wrapping paper
3. Buckle
4. Wood pallet

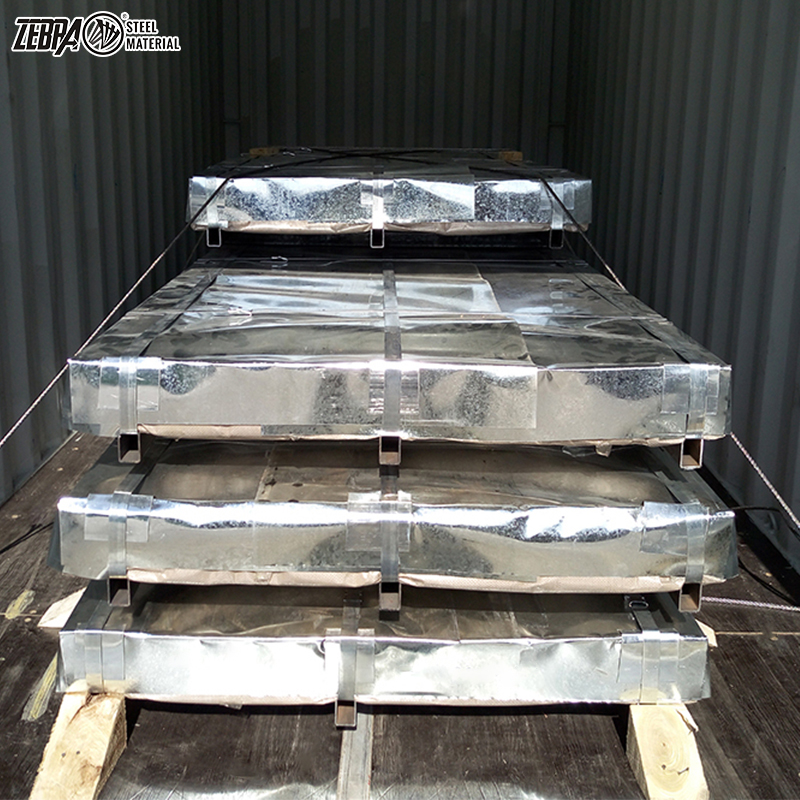

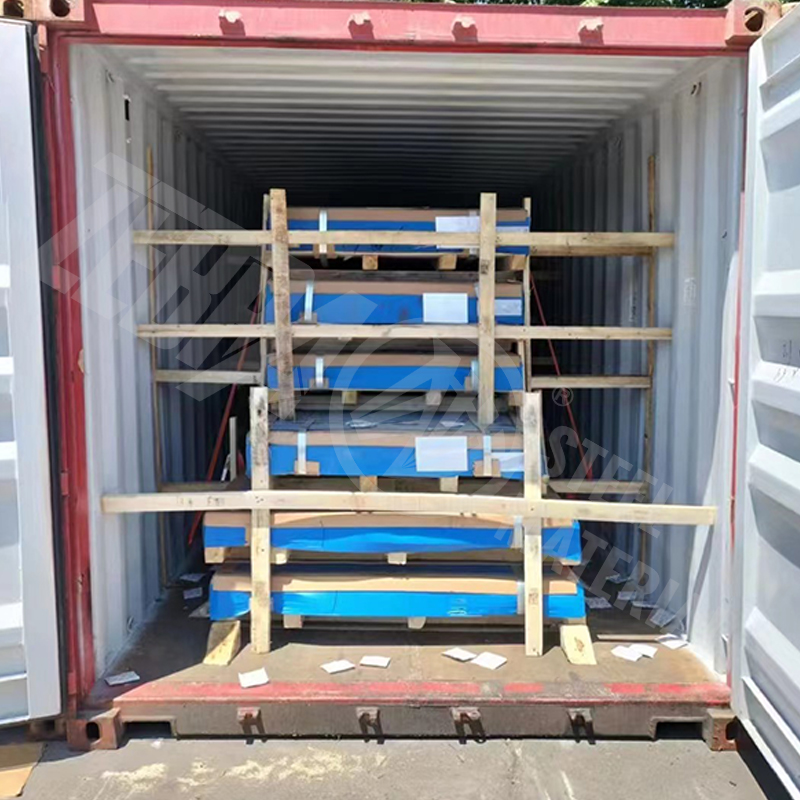

1. Wooden pallets
2. Wooden frames for fixing
3. Steel wire ropes for fixing steel coils
4. Loading Port: Tianjin/Qingdao/Shanghai Port.

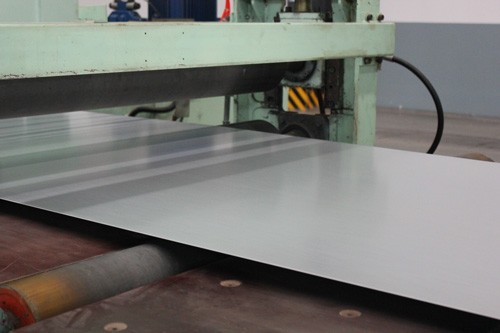

Cut into the required size as needed

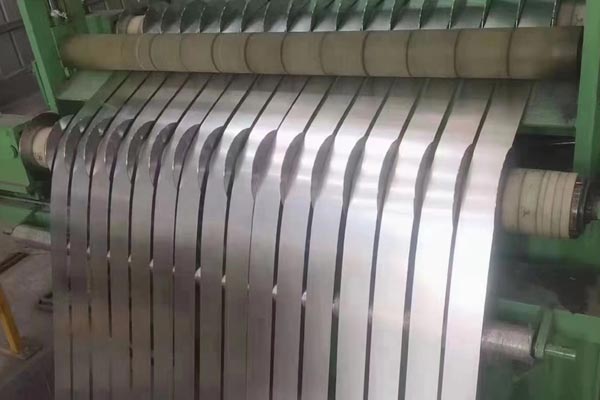

Divide the steel coil into the required fine strips

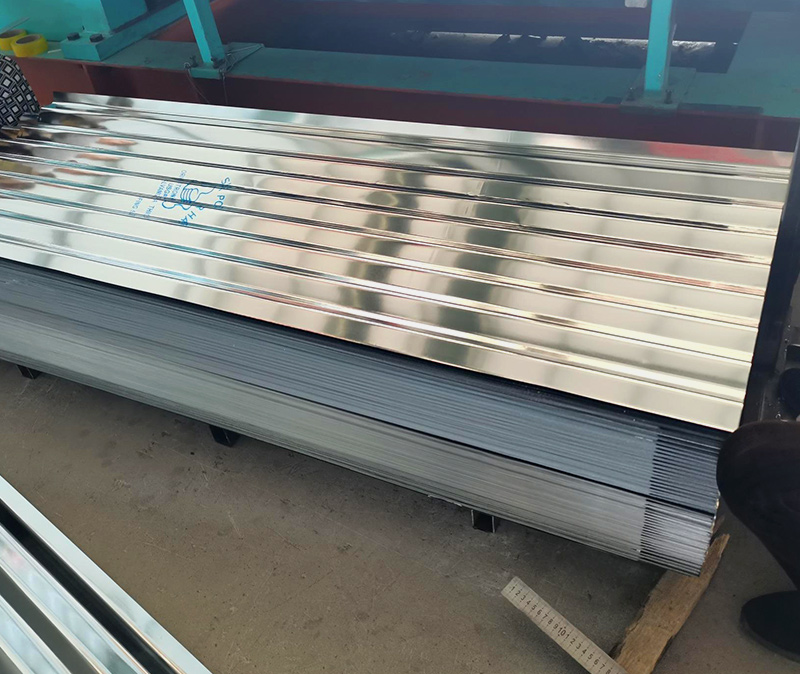

Forming and deep drawing systems combined with rollforming; corrugated roof sheet.

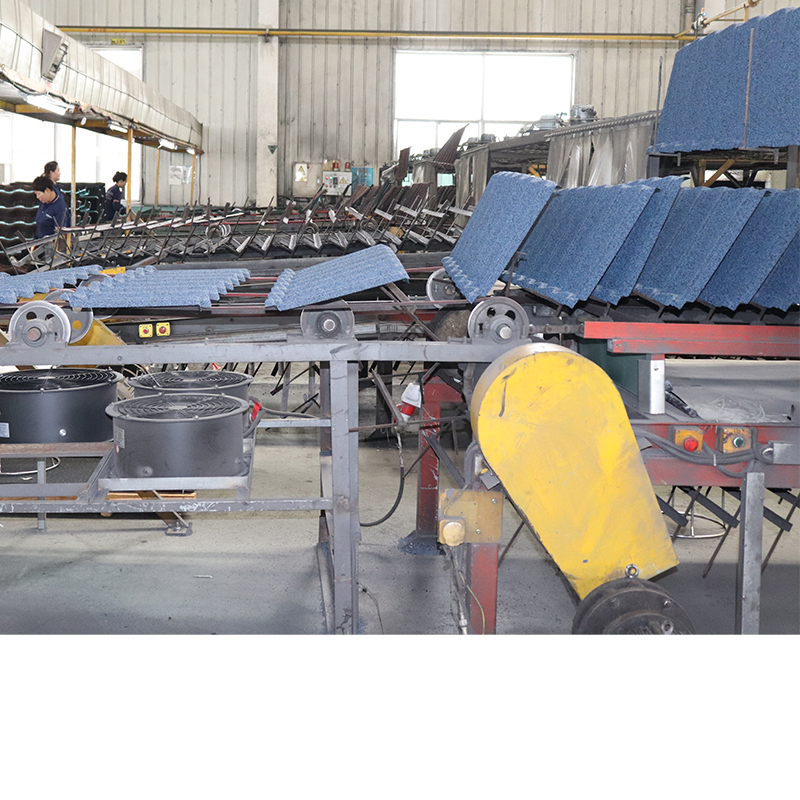

Can be processed stone coated roof tile
Professional steel material supplier since 2008. We provide Cold rolled steel, GI, GL, PPGI, PPGL, Corrugated roofing sheet, Color-coated steel, Stainless steel, Carbon steel, and Steel pipe.

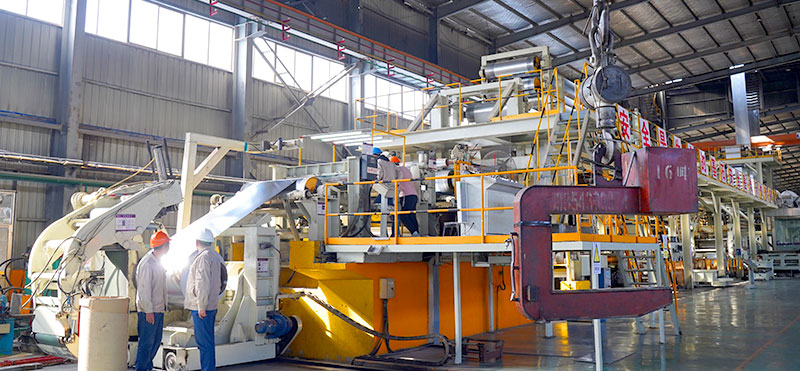

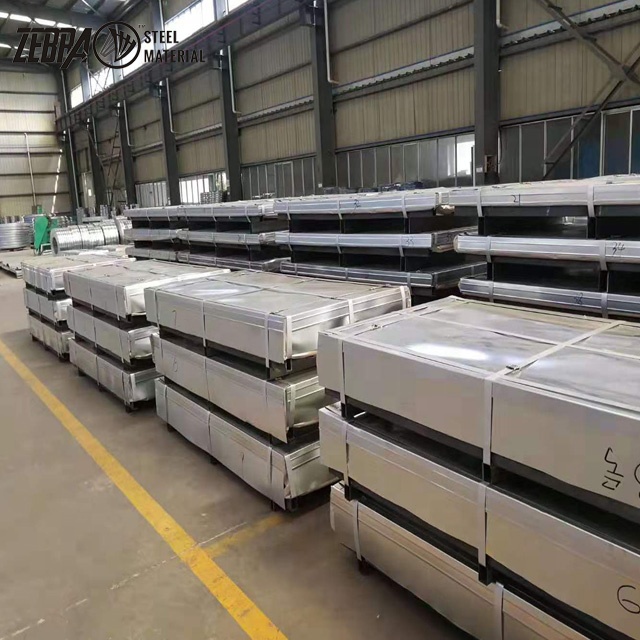

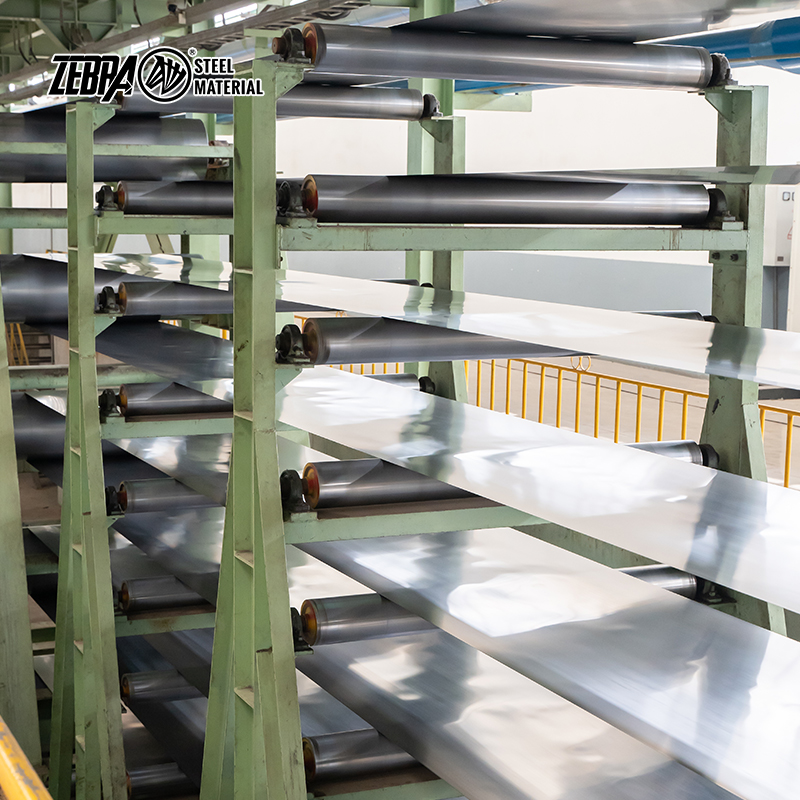

Covering a vast area, we own 8 production lines, including cold-rolling, galvanized steel, aluminized zinc silicon, color coated production lines, and stainless steel processing.

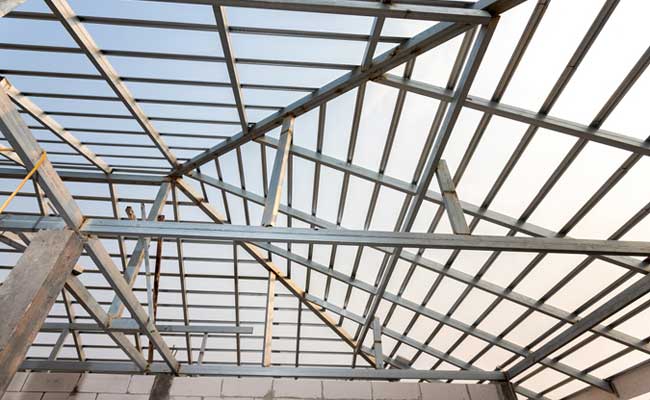

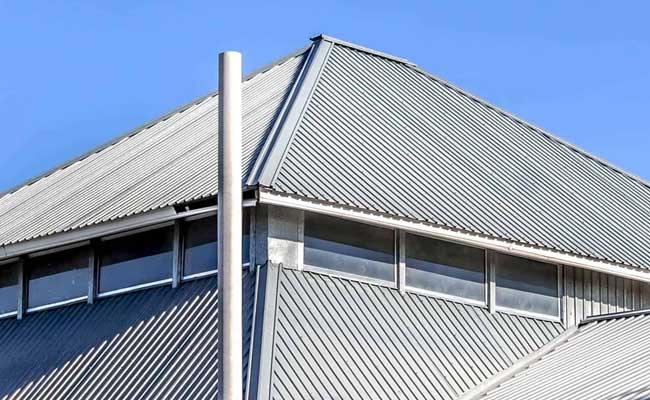

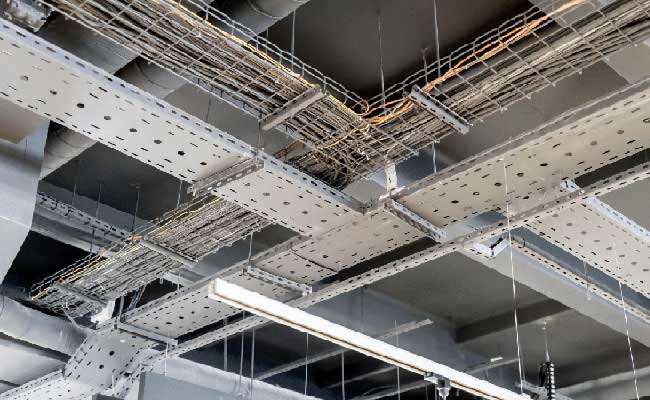

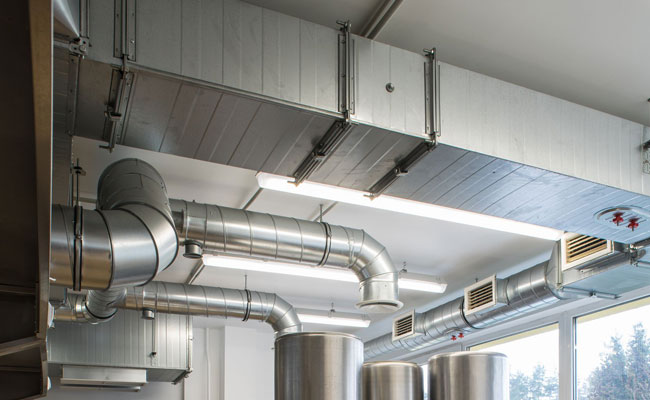

The zinc coating provides a robust barrier against rust and corrosion, extending the lifespan of your projects. Perfect for roofing, wall panels, or structural components.
Zinc coating: 30-120 gsm | Thickness: 0.12-0.8 mm | Grade: DX51D
Zinc coating: 120-275 gsm | Thickness: 0.8-1.50 mm | Grade: S550GD
Zinc coating: 60-180 gsm | Thickness: 0.5-2.0 mm | Grade: DX51D
Zinc coating: 80-275 gsm | Thickness: 0.5-1.5 mm | Grade: DX51D
