High-Performance Electrical Transformer Core Steel Sheets for Efficiency

Customization:	Available
Type:	Oriented Silicon Steel
Standard:	GB

Send Inquiry

Product Description

Overview Product Description Company Profile Projects Certificates Packaging & Shipping FAQ

Basic Info

Model NO.B23R075

TechniqueCold Rolled

ShapeSheet

Thickness0.23mm

Iron Loss0.75W/Kg(1.7t/50Hz)

BrandPremium Grade

Width35-1060mm

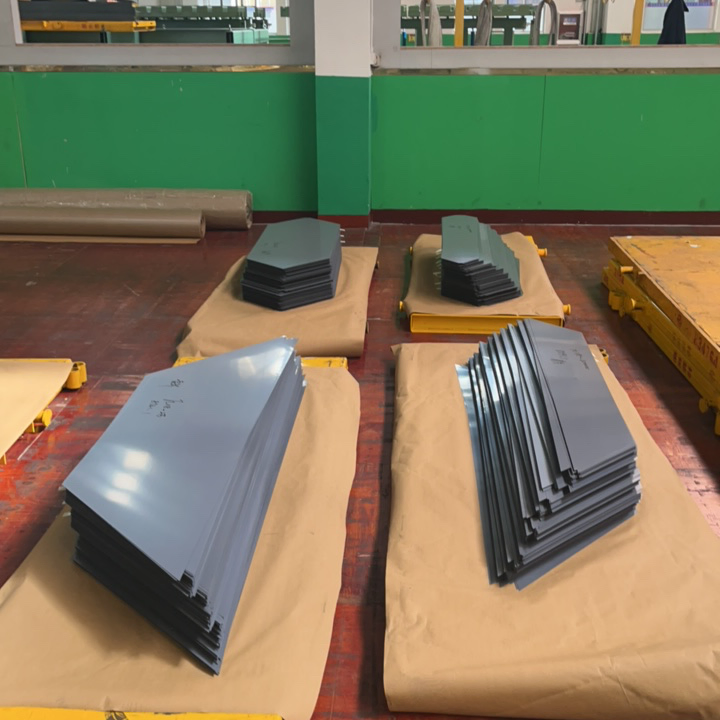

Transformer LaminationOEM (Based on Drawing)

Transport PackageExport Wood Box

Specification1000*1000*600mm

OriginChina

HS Code85049019

Production Capacity30,000 Tons/Month

Product Description

Our premium-grade oriented silicon steel, a meticulously engineered low-carbon silicon iron alloy, boasts a precise silicon content ranging between 0.5% and 4.5%. Known for its outstanding high permeability, our material dramatically reduces Joule loss in power equipment, thereby significantly enhancing efficiency and providing unparalleled energy-saving benefits. Furthermore, it exhibits reduced iron loss and an exceptional resistance coefficient, setting new standards in the industry.

Raw Material: We proudly utilize top-tier CRGO silicon steel sourced from industry-leading manufacturers, ensuring the utmost quality.

Type	Grade	Width	Max Core Loss @ 1.7T/50Hz	Lamination Factor (%)	Min Induction @ B800
Common Type	23Q110	35-1200mm	1.10w/kg	97.2	1.82T
	23Q120		1.20w/kg	97.2	1.82T
	27Q120		1.20w/kg	97.5	1.82T
	30G120		1.20w/kg	98	1.82T
High Induction Type	B20P085	35-1200mm	0.85w/kg	97	1.86T
	B23P085		0.85w/kg	97.2	1.88T
	B23P090		0.90w/kg	97.2	1.88T
	B23P095		0.95w/kg	97.2	1.88T
	B23P100		1.00w/kg	97.2	1.88T
	B27P095		0.95w/kg	97.5	1.89T
	B27P100		1.00w/kg	97.5	1.89T
	B30P120		1.20w/kg	98	1.89T
Domain Refined High Induction Type (Laser)	B20R070	35-1200mm	0.70w/kg	97	1.86T
	B23R075		0.75w/kg	97.2	1.88T
	B27RK085		0.85w/kg	97.5	1.89T

We provide meticulously calculated and detailed quotations based on your specific drawings, ensuring transparency and precision. Once we receive your confirmation, we will promptly proceed with production according to the specifications provided in your drawings.

Company Profile

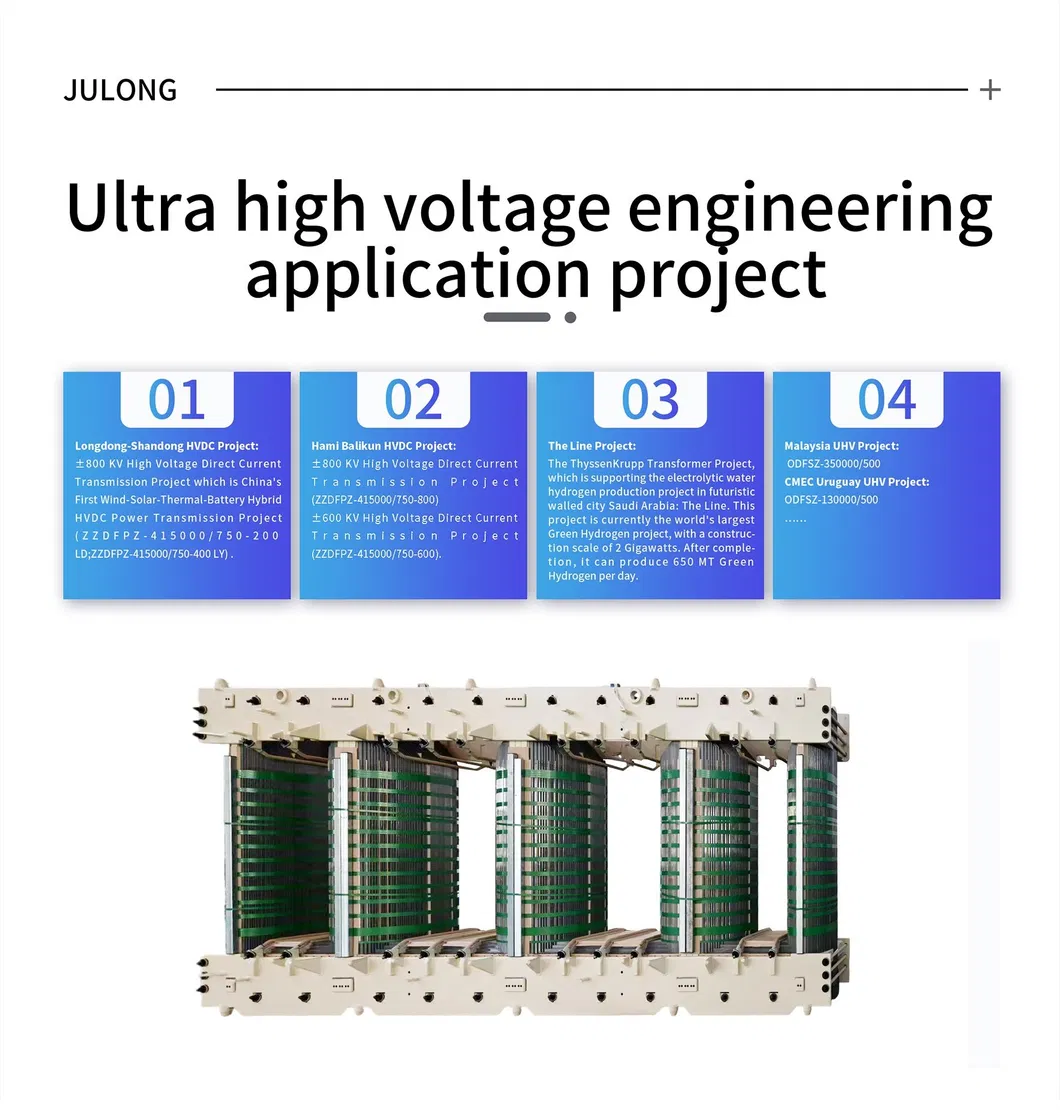

Projects

Certificates

Packaging & Shipping

FAQ

1Which products can you provide?

We offer an extensive range of products, including CRGO mother coils, slit coils, transformer laminations, and custom OEM transformer cores, tailored to meet your specific needs.

2What is your industry experience in this sector?

Founded in 1988, we have been a pioneer in the CRGO silicon steel sector. We have established pioneering joint laboratories and development partnerships with industry-leading manufacturers, continuously pushing the boundaries of innovation.

3How do you guarantee product quality?

We adhere strictly to ISO9001:2015 standards. Our engineers conduct thorough technical calculations before order placement, and post-production, each item undergoes extensive testing to ensure flawless quality before shipment.

4Why choose your products over other suppliers?

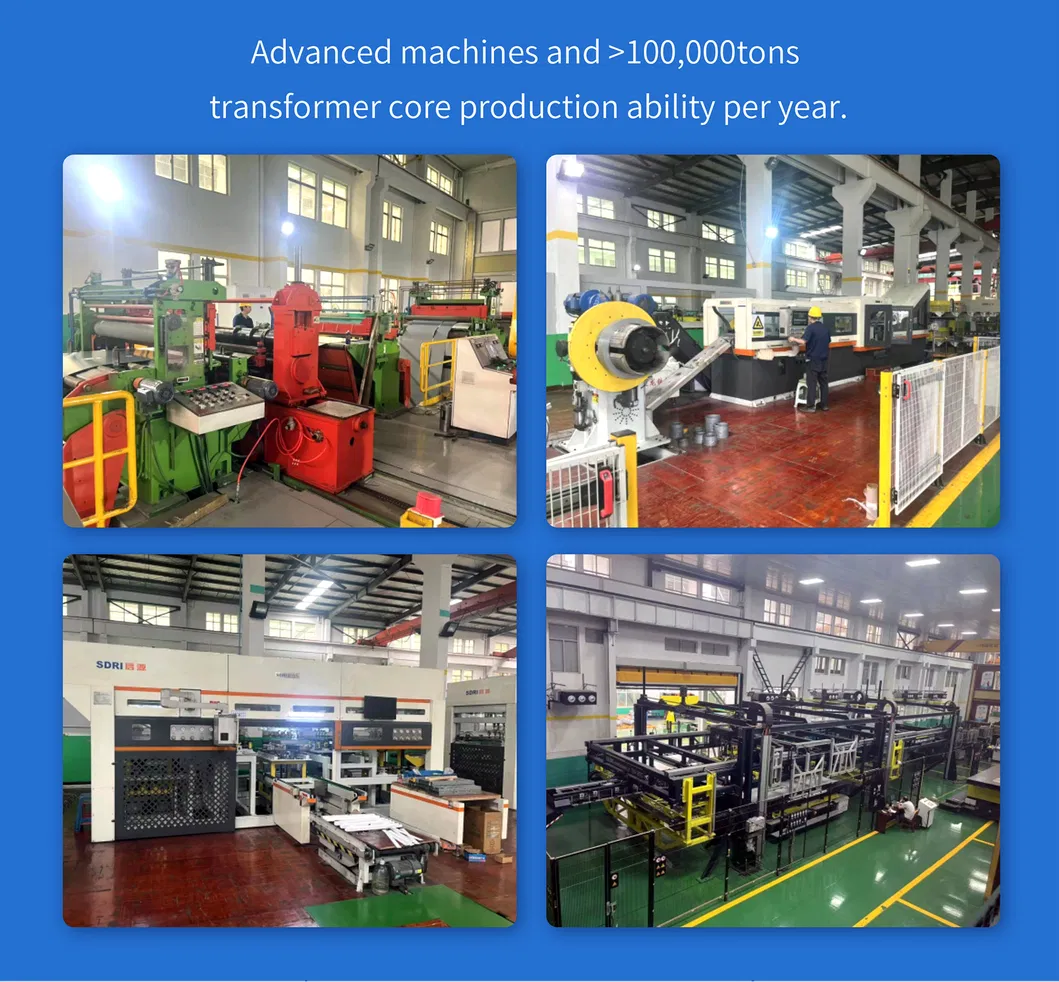

With over three decades of expertise in transformer core production, our advanced German slit cutting systems and the state-of-the-art E-stack machine enable us to exceed an annual production capacity of 100,000 tons, ensuring the highest standards of quality and efficiency.

5What are the key performance benefits of your oriented silicon steel?

Our premium oriented silicon steel is formulated with low-carbon silicon iron alloy to provide high magnetic permeability, which greatly reduces core loss, decreases heat generation, and improves the energy efficiency of power transformers.

6Do you offer custom manufacturing according to technical drawings?

Yes, we specialize in OEM production. We process and laminate transformer cores precisely matching the technical specifications, sizing, and shapes provided in our clients' technical drawings.
