Huage Transformer Core 0.27mm Grain Oriented Electrical Silicon Steel Lamination Sheet

Product Description

Product Introduction
0.27mm Grain Oriented Electrical Silicon Steel Lamination Sheet

Our high-grade oriented silicon steel is a low-carbon silicon iron alloy with a silicon content ranging from 0.5% to 4.5%. Distinguished by its remarkable high permeability, it significantly reduces Joule loss in power equipment, thereby enhancing efficiency and promoting substantial energy-saving effects. Additionally, it boasts lower iron loss and a high resistance coefficient.

Raw Material: We utilize top-quality CRGO silicon steel sourced from leading domestic steel manufacturers.
Technical Specifications
Type Grade Width Max Core Loss @ 1.7T/50Hz Lamination Factor (%) Min Induction @ B800
Common Type 23Q110 35-1200mm 1.10w/kg 97.2 1.82T
23Q120 1.20w/kg 97.2 1.82T
27Q120 1.20w/kg 97.5 1.82T
30G120 1.20w/kg 98 1.82T
High Induction Type B20P085 35-1200mm 0.85w/kg 97 1.86T
B23P085 0.85w/kg 97.2 1.88T
B23P090 0.90w/kg 97.2 1.88T
B23P095 0.95w/kg 97.2 1.88T
B23P100 1.00w/kg 97.2 1.88T
B27P095 0.95w/kg 97.5 1.89T
27QG100 1.0w/kg 97.5 1.89T
B30P120 1.20w/kg 98 1.89T
Domain Refined High Induction Type(Laser) B20R065 35-1200mm 0.65w/kg 97 1.86T
B23R085 0.85w/kg 97.2 1.88T
B27RK085 0.85w/kg 97.5 1.89T
⚠️We meticulously calculate and update the quotation according to your drawings. Upon your confirmation, we will proceed with production based on the provided drawings.

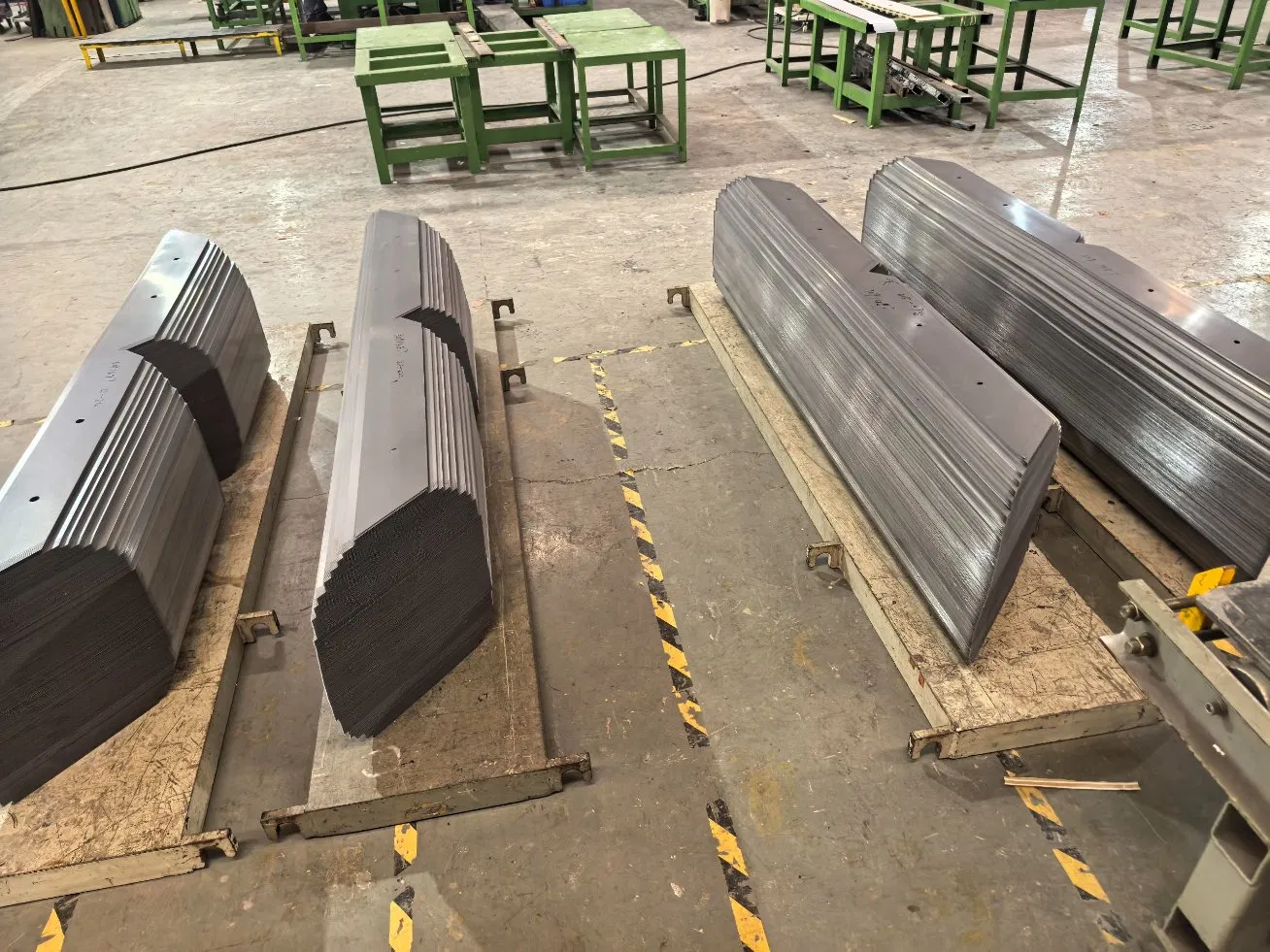

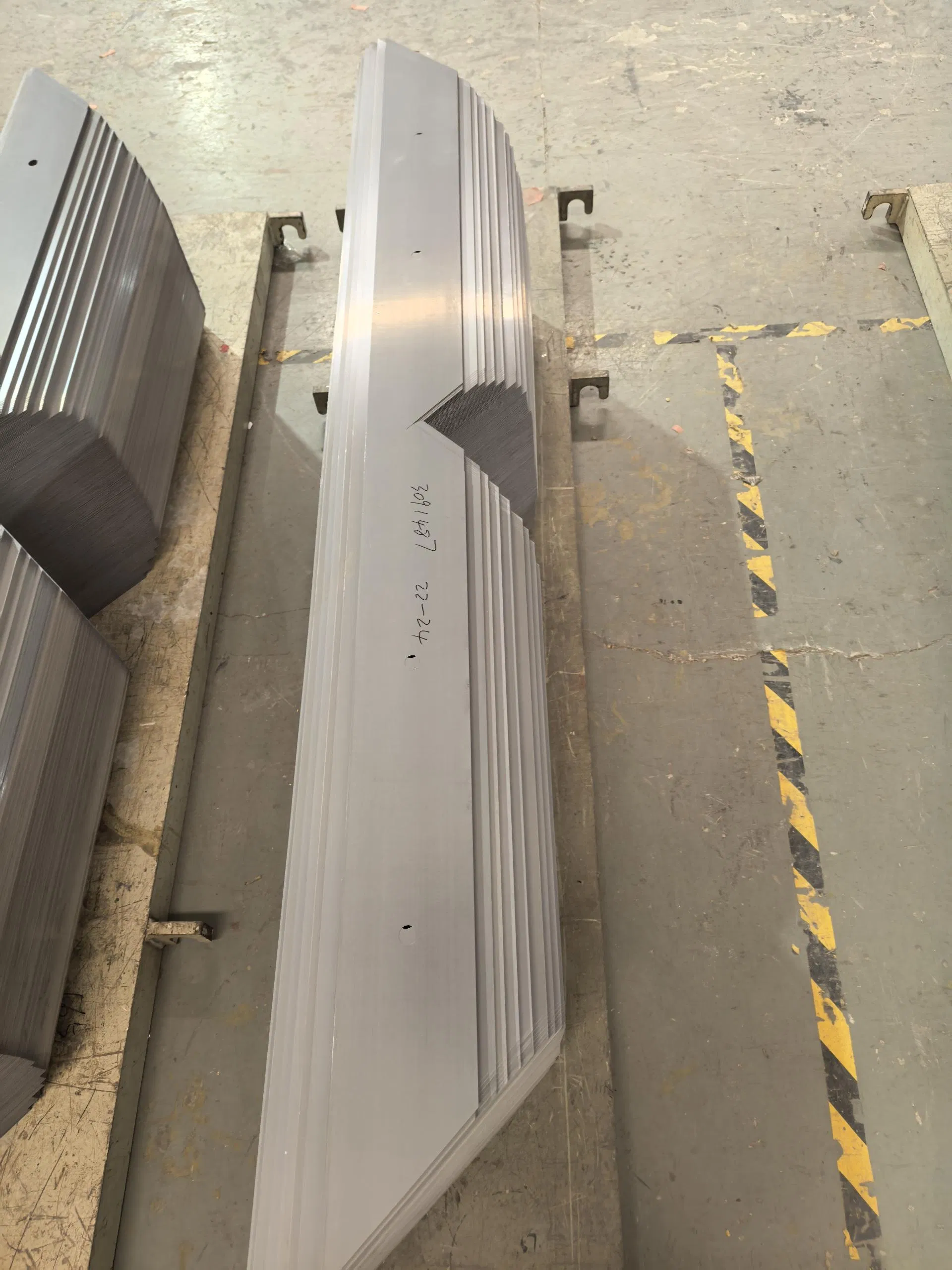

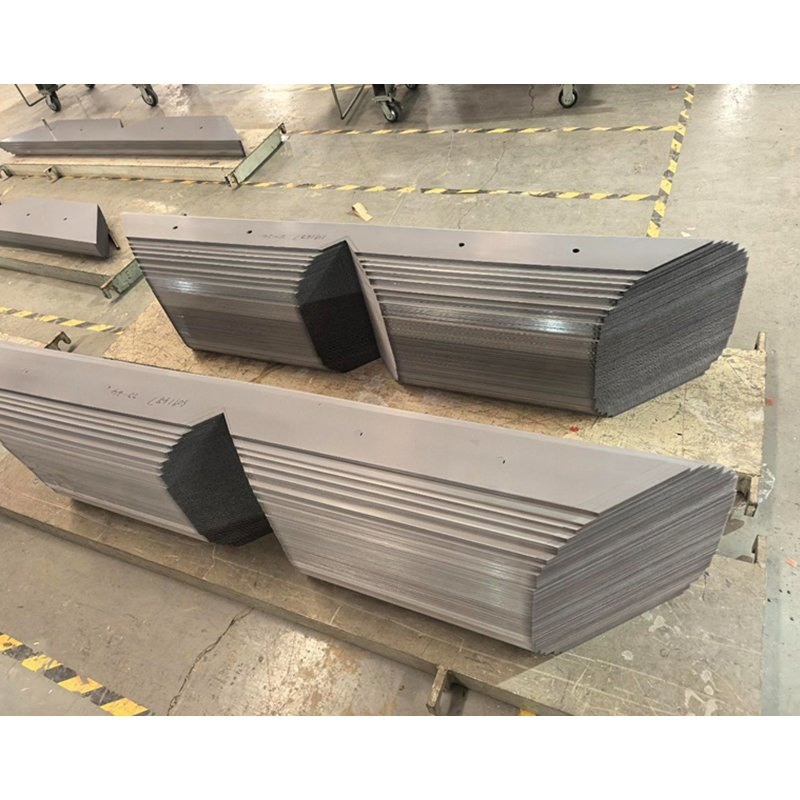

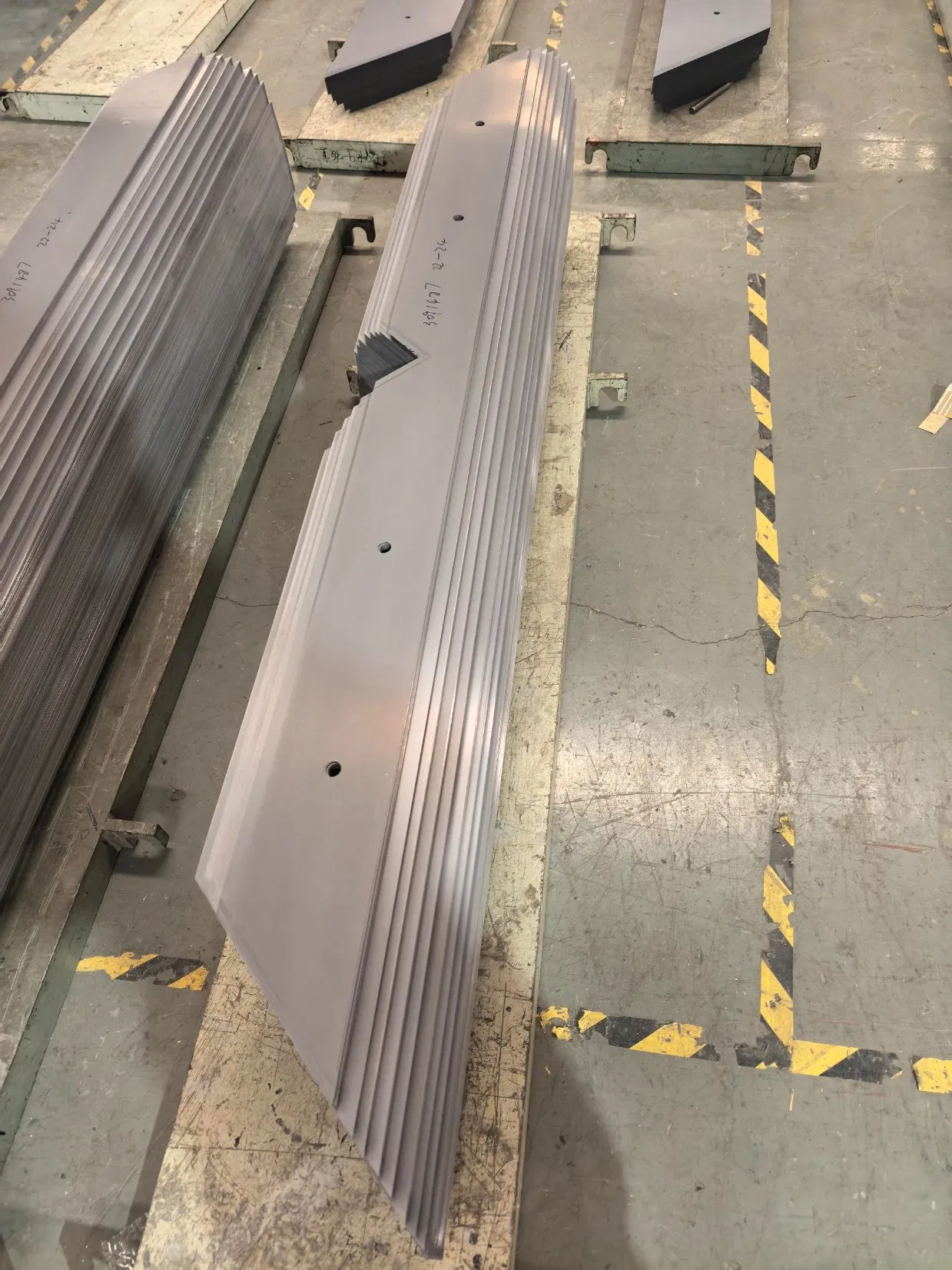

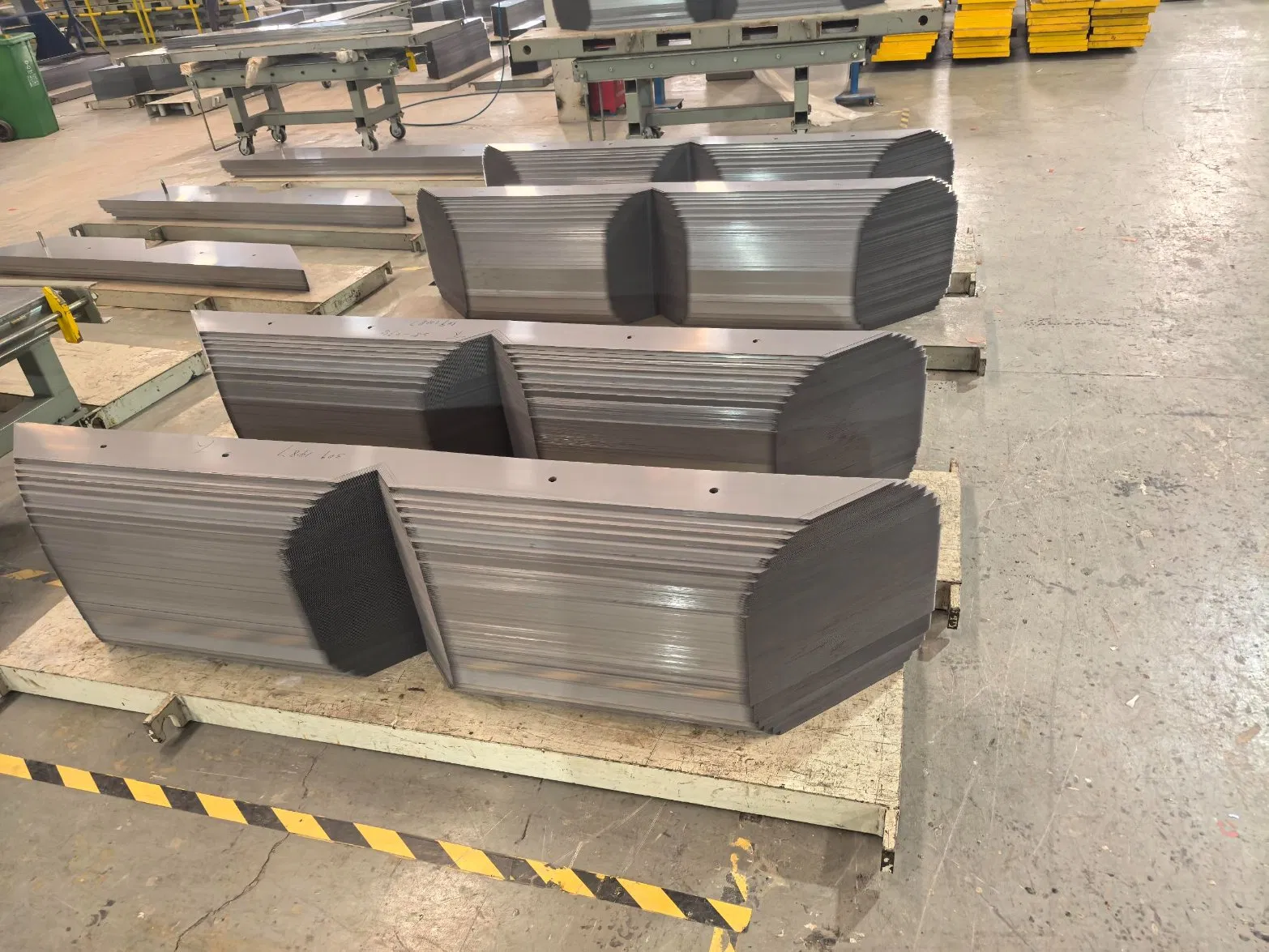

Product Gallery
Company Profile

Our manufacturing facility specializes in manufacturing transformer cores and clamps. Founded in 2000, we have advanced production lines which enable efficient, automated production and cost savings. We are capable of producing large - capacity dry - type transformer cores below 34,000K, with a 20,000 - ton annual capacity.

Adhering to strict quality management systems, Our products pass rigorous inspections. With over 20 years of experience, we supply to leading global power enterprises and famous domestic companies. Our products are exported to Europe, the US and other countries all around the world.

Aligning with energy policies, we boost high-end transformer production. We are establishing a new factory for dry-type transformers and smart substations in our advanced industrial zone. Sticking to "quality, technology, service first", we strive for innovation and cooperation as always.

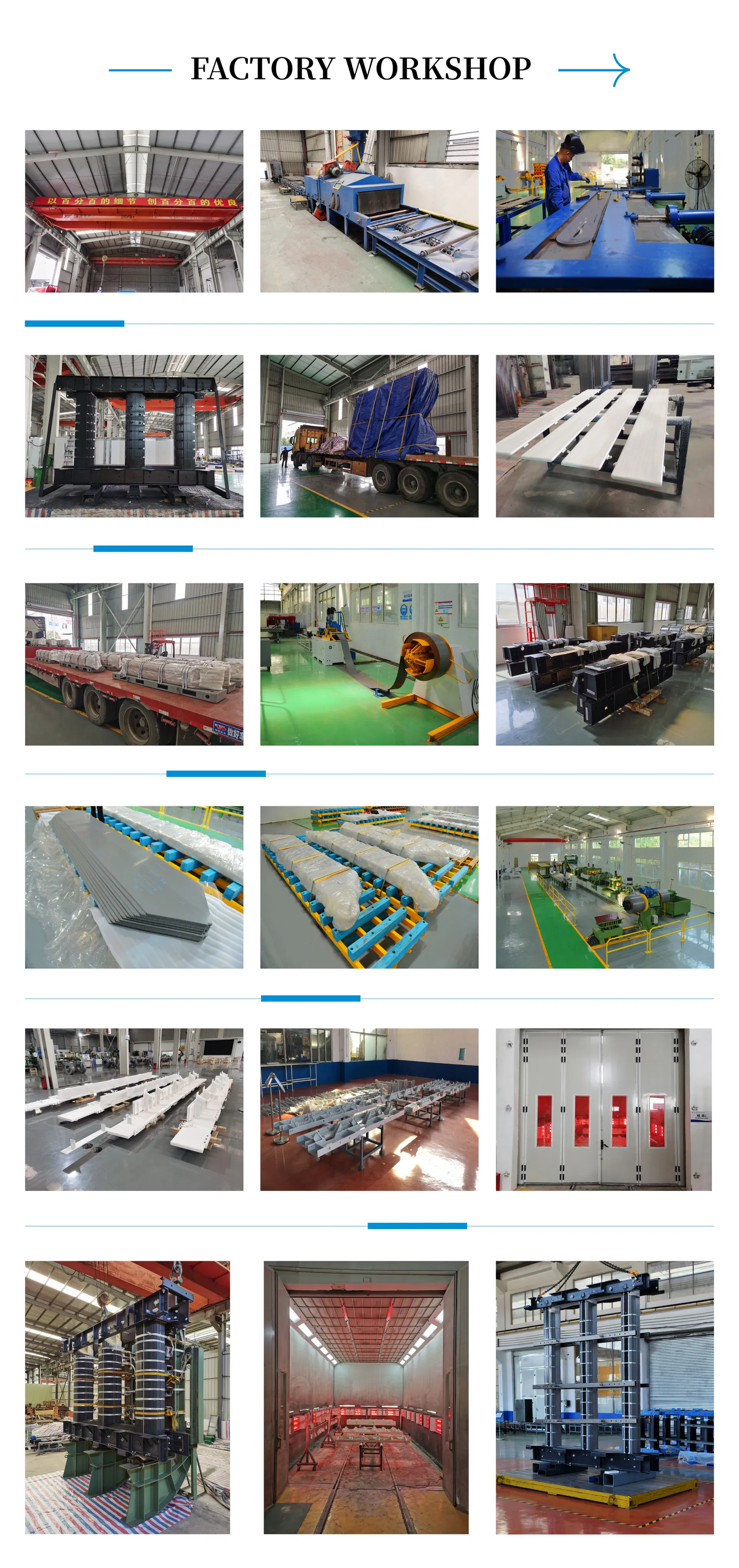

Transformer Core Production Line
Certifications
Certificates of Quality
Packaging & Shipping
Packaging & Shipping Methods
Frequently Asked Questions
QWhich products can we provide?
We provide CRGO mother coils, slit coils, transformer lamination, and OEM transformer cores.
QWho are we?
We are a pioneering force in CRGO silicon steel products since 2000, establishing long-term collaborations with top-tier steel suppliers and joint laboratory setups for advanced research.
QHow can we guarantee quality?
We strictly adhere to the ISO9001:2015 standard. Prior to order confirmation, our engineers conduct thorough calculations, and we rigorously test each product after production before dispatch.
QCan you customize production according to drawings?
Yes. We carefully calculate and update quotes based on the technical drawings you provide. Production begins only after you confirm and approve the details.
QWhat is your manufacturing capacity?
We possess a 20,000-ton annual capacity and are fully capable of producing large-capacity dry-type transformer cores below 34,000K.
QWhat materials do you use for your cores?
We utilize high-grade CRGO silicon steel raw materials sourced from leading high-end steel manufacturers to ensure low loss and high permeability.
