Product Description
Oriented silicon steel is a low-carbon silicon iron alloy material with a silicon content of 0.5%~4.5%, which has characteristics such as high permeability (which can reduce Joule loss in power equipment, improve efficiency and energy-saving effects), lower iron loss and high resistance coefficient.
Raw material: CRGO silicon steel from leading steel manufacturers.
| Type |
Grade |
Width |
Max Core Loss @ 1.7T/50Hz |
Lamination Factor(%) |
Min Induction@B800 |
| Common Type |
23Q110 |
35-1200mm |
1.10w/kg |
97.2 |
1.82T |
| 23Q120 |
1.20w/kg |
97.2 |
1.82T |
| 27Q120 |
1.20w/kg |
97.5 |
1.82T |
| 30G120 |
1.20w/kg |
98 |
1.82T |
| High Induction Type |
B20P085 |
35-1200mm |
0.85w/kg |
97 |
1.86T |
| B23P085 |
0.85w/kg |
97.2 |
1.88T |
| B23P090 |
0.90w/kg |
97.2 |
1.88T |
| B23P095 |
0.95w/kg |
97.2 |
1.88T |
| B23P100 |
1.00w/kg |
97.2 |
1.88T |
| B27P095 |
0.95w/kg |
97.5 |
1.89T |
| 27QG100 |
1.00w/kg |
97.5 |
1.89T |
| B30P120 |
1.20w/kg |
98 |
1.89T |
| Domain Refined High Induction Type(Laser) |
B20R070 |
35-1200mm |
0.70w/kg |
97 |
1.86T |
| B23R085 |
0.85w/kg |
97.2 |
1.88T |
| B27RK085 |
0.85w/kg |
97.5 |
1.89T |
?
Frequently Asked Questions
Q1 Which products can be provided?
We provide CRGO mother coils, slit coils, transformer lamination, and OEM transformer cores.
Q2 What is the background and experience in this industry?
As a pioneer of CRGO silicon steel products in China since 1988, we have established joint research laboratories with top steel manufacturers to ensure continuous material innovation.
Q3 How is the product quality guaranteed?
We manufacture strictly according to ISO9001:2015 Standards. Before starting production, our engineers carefully calculate specifications, and we perform thorough quality testing on every batch before shipping.
Q4 What advantages distinguish these products from other suppliers?

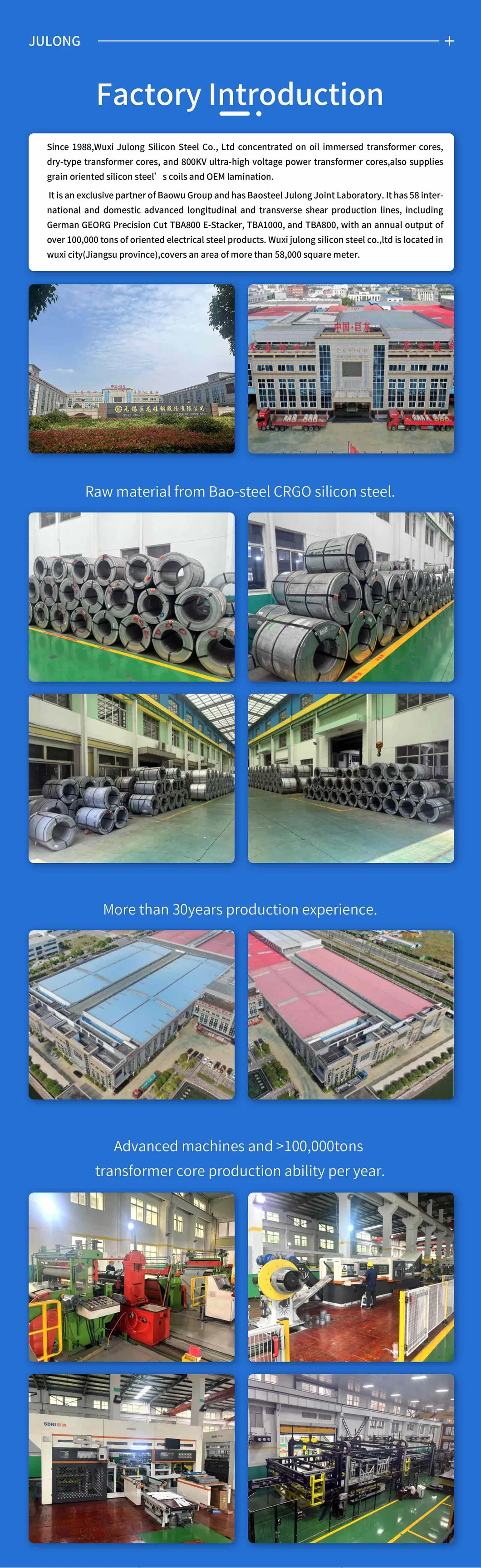

With over 30 years of manufacturing experience, our production line is equipped with advanced German slitted cutting systems and high-precision cross-cutting E-stack machines. Our annual transformer core production capacity exceeds 100,000 tons.

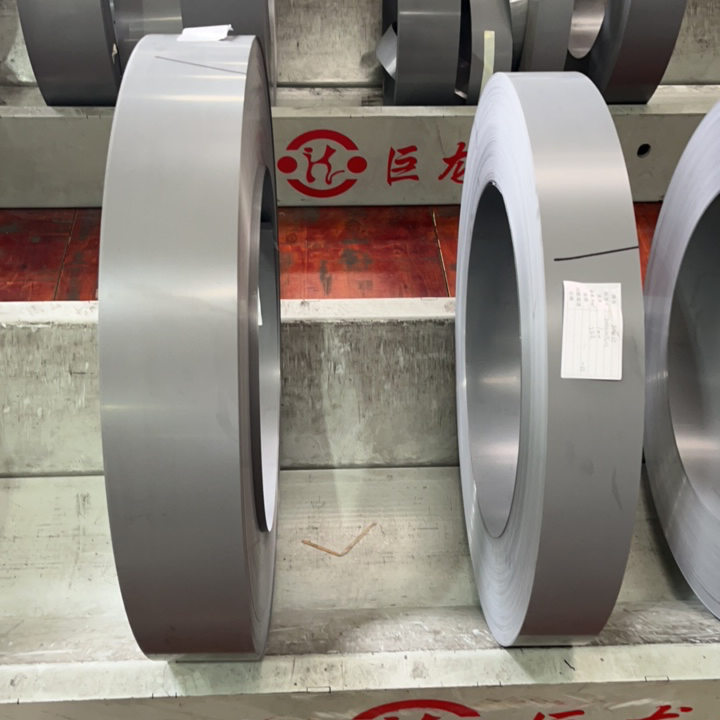

Q5 What are the thickness and width options for the silicon steel coils?
Our standard oriented silicon steel coils have a thickness of 0.27mm and are available in widths ranging from 35mm to 1200mm to suit diverse electrical applications.
Q6 What are the main performance benefits of oriented silicon steel?
It is a low-carbon silicon iron alloy containing 0.5%~4.5% silicon. It features high magnetic permeability to reduce energy loss in power systems, exceptionally low core iron loss, and a high resistance coefficient.
