High magnetic induction oriented silicon steel sheet is the main material that constitutes the transformer core. The basic requirements for the transformer core material are low ferromagnetic loss at a certain frequency and magnetic flux density and high magnetic flux density at a certain magnetic field intensity. The size of the no-load loss of the transformer is mainly determined by the material of the silicon steel sheet. In addition, it is related to the design and manufacturing process of the iron core.

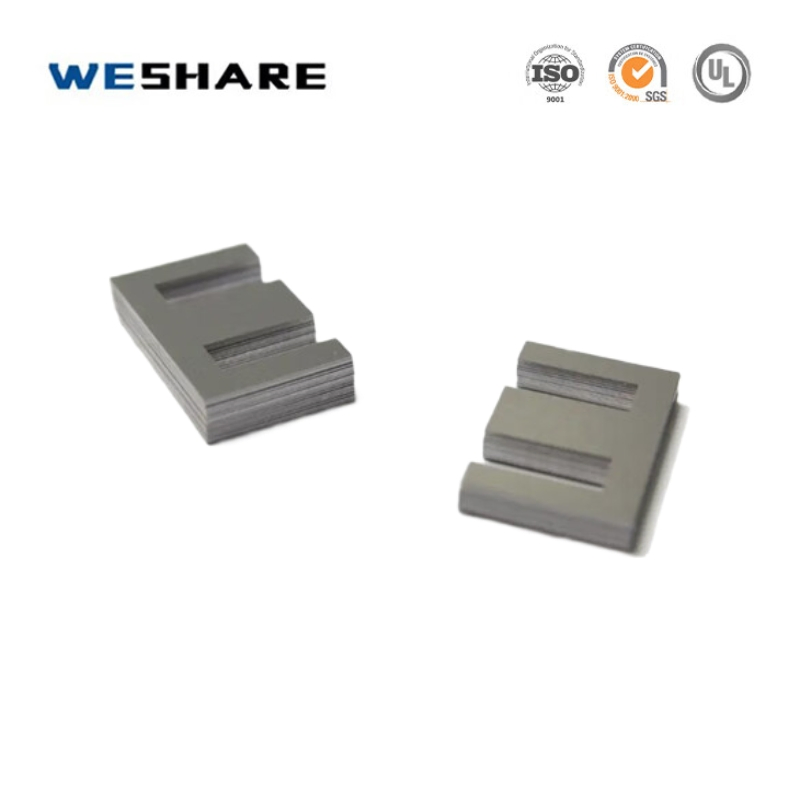

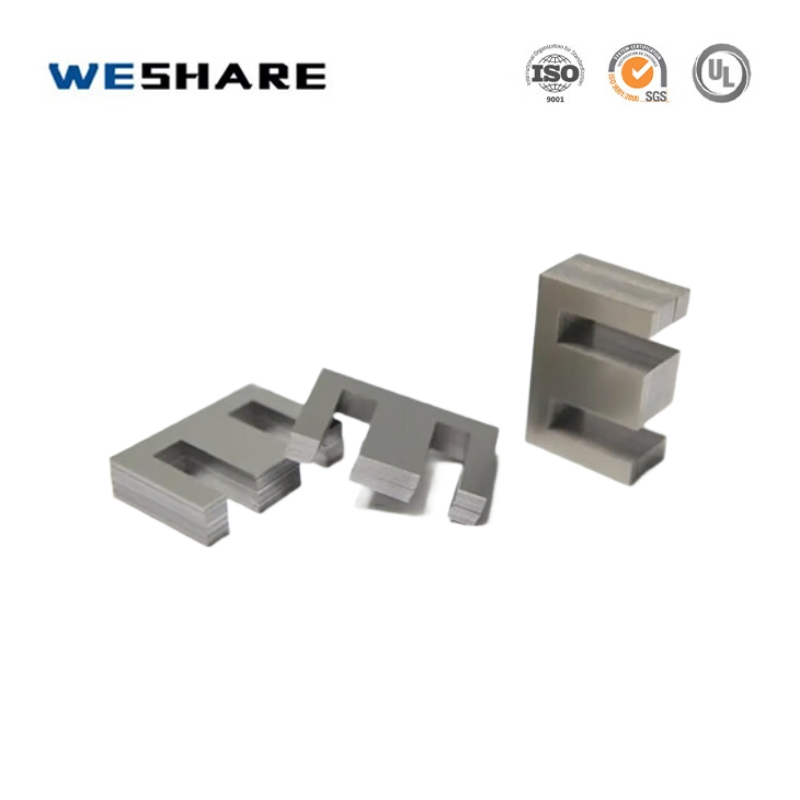

Fast Delivery Smooth Surface Electrical Silicon Steel Sheet Price

1/ Model Specifications

Buyers can choose different types of EI silicon steel sheets according to specific needs, such as EI-28, EI-30, etc. Different models correspond to different size parameters and can be adapted to various types of motors and transformer equipment.

2/ Main Size Parameters

A size (external length) and B size (external width): This is the total size of the silicon steel sheet. Buyers usually choose the appropriate dimensions based on equipment specifications.
C, D, E dimensions: The width and spacing of the middle part, adapted to internal structures to ensure optimal electromagnetic performance.
F and G dimensions: F represents the overall height of the stack, and G represents the width of side panels, directly affecting installation tightness and stability.

3/ Aperture

Aperture sizing directly impacts installation convenience and stability. Different models of aperture designs (such as 3.2, 3.5, 4.0, etc.) are available to suit various equipment requirements.

Product Parameters

Model	A	B	C	D	E	F	G	Hole
EI - 28	28	21	8	4	6	17	4	/
EI - 30	30	20	10	5	5	15	5	/
EI - 35	35	24.5	10	5	7.5	19.5	5	/
EI - 38.4	38.4	25.6	12.8	6.4	6.4	19.2	6.4	/
EI - 38.4	38.4	44.8	12.8	6.4	6.4	38.4	6.4	/
EI - 41	41	27	13	6	8	21	6	3.2
EI - 42	42	28	14	7	7	21	7	3.5
EI - 48	48	32	16	8	8	24	8	3.5
EI - 50	50	34	14	9	9	25	8	/
EI - 54	54	36	18	9	9	27	9	3.5
EI - 57	57	38	19	9.5	9.5	28.5	9.5	4.0
EI - 60	60	40	20	10	10	30	10	3.5
EI - 66	66	44	22	11	11	33	11	4.5
EI - 75	75	50	25	12.5	12.5	37.5	12.5	/
EI - 76.2	76.2	50.8	25.4	12.7	12.7	38.1	12.7	5.0
EI - 78	78	52	26	13	13	39	13	5.0
EI - 78	78	53	22	14	14	39	14	5.0
EI - 84	84	56	28	14	14	42	14	5.0
EI - 85.8	85.8	57.2	28.6	14.3	14.3	42.9	14.3	5.0
EI - 96	96	64	32	16	16	48	16	6.2
EI - 105	105	70	35	17.5	17.5	52.5	17.5	6.0
EI - 108	108	72	36	18	18	54	18	5.5
EI - 114	114	76	38	19	19	57	19	7.0
EI - 120	120	80	40	20	20	60	20	7.0
EI - 126	126	84	42	21	21	63	21	14.0
EI - 132	132	88	44	22	22	66	22	7.0
EI - 133.2	133.2	88.8	44.4	22.2	22.2	66.6	22.2	7.0
EI - 144	144	98	40	26	26	72	26	7.0

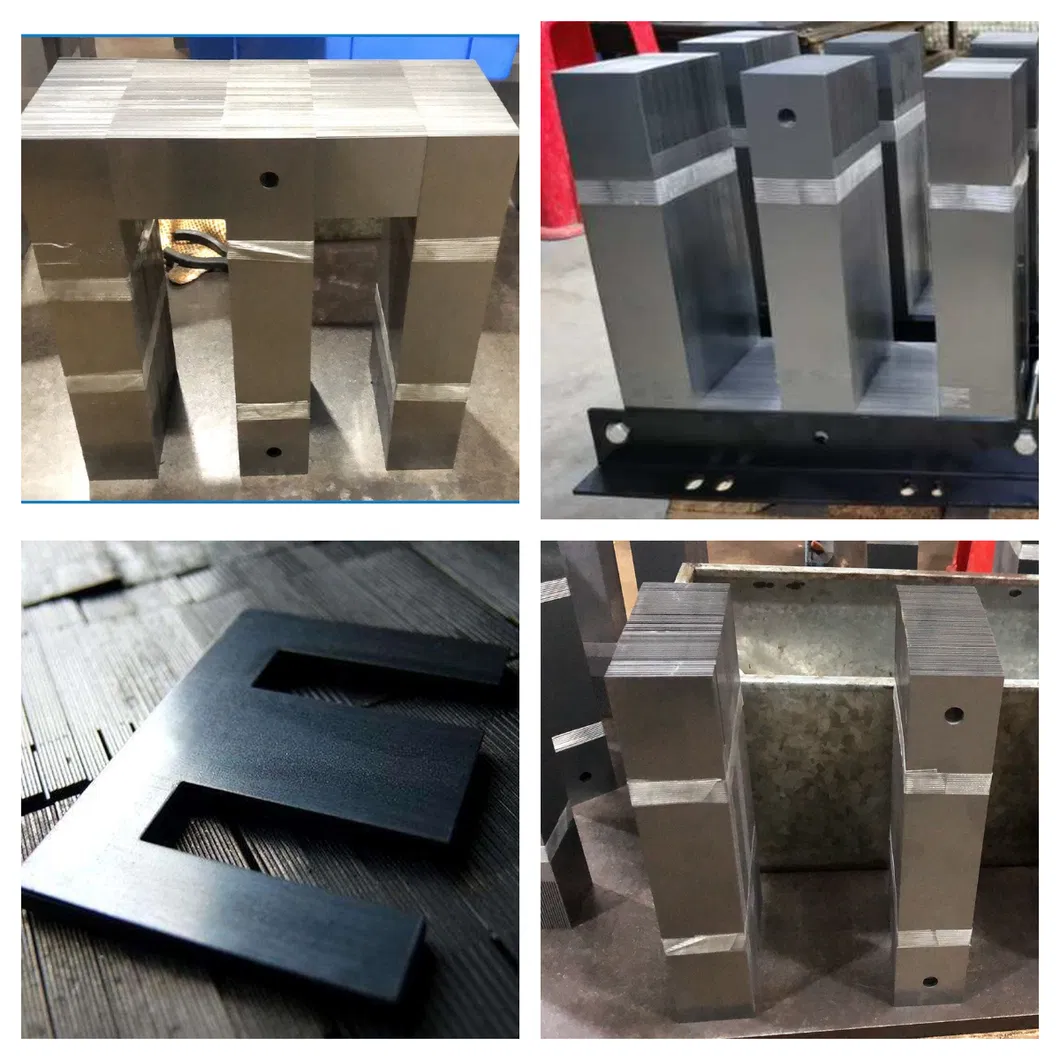

Detailed Photos

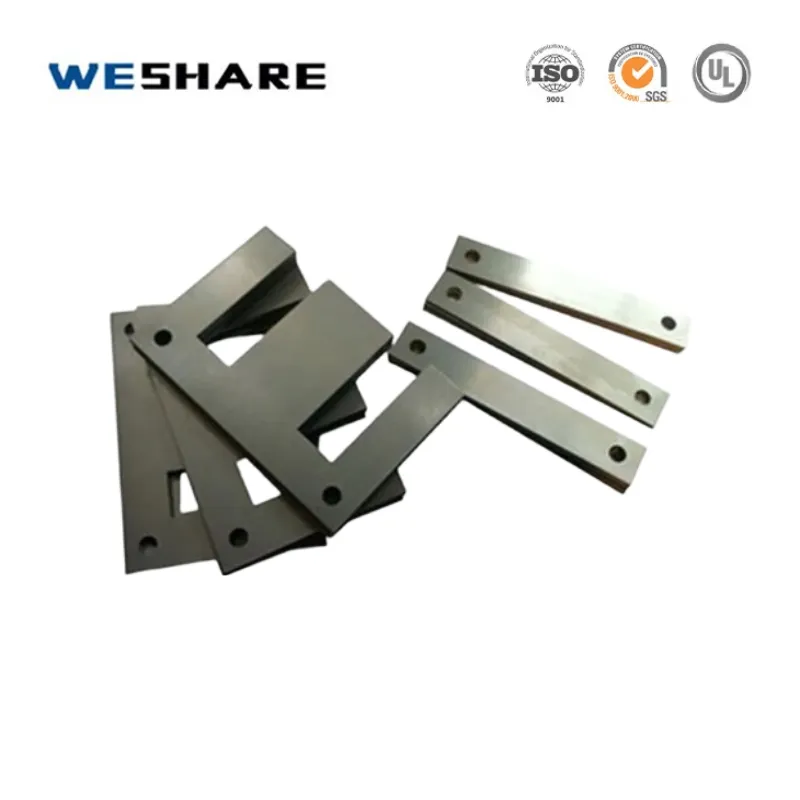

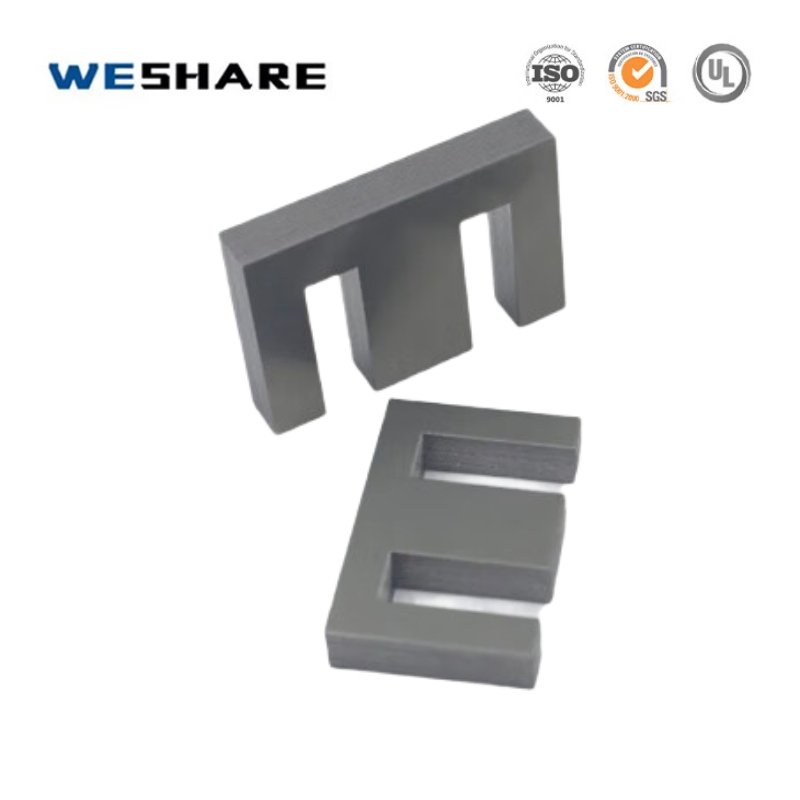

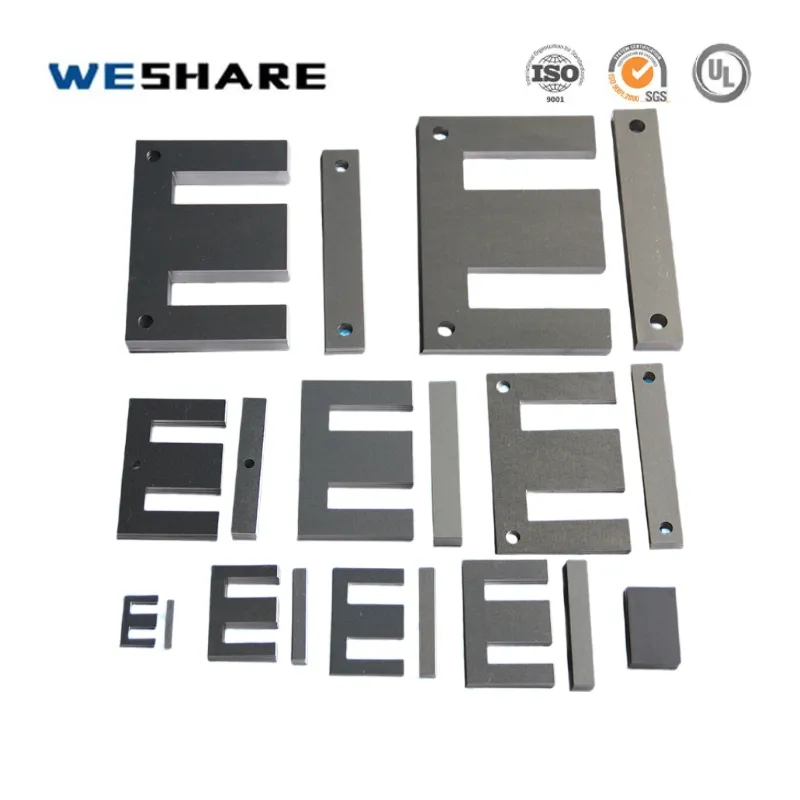

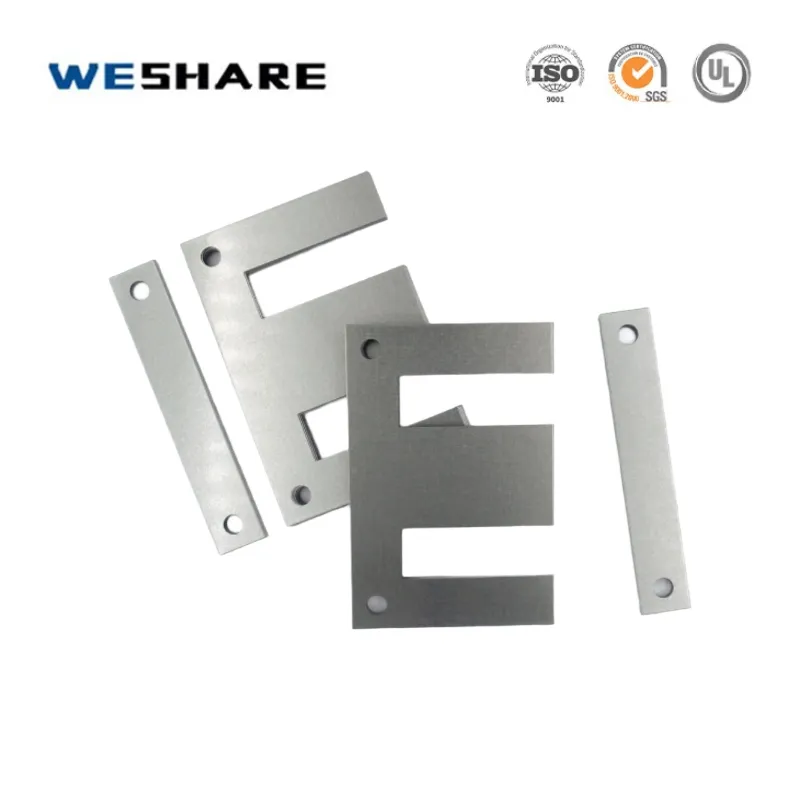

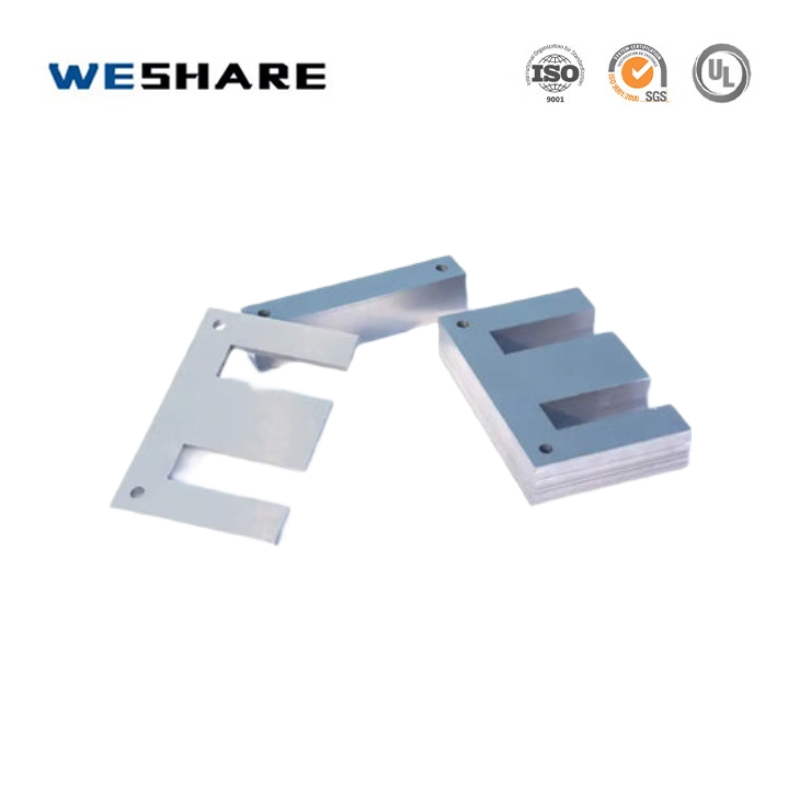

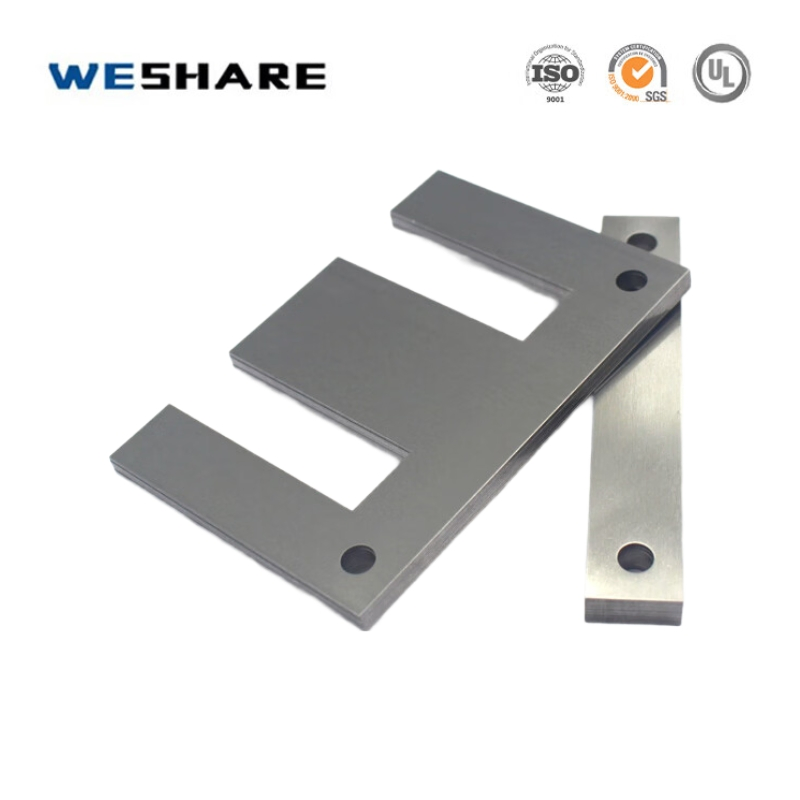

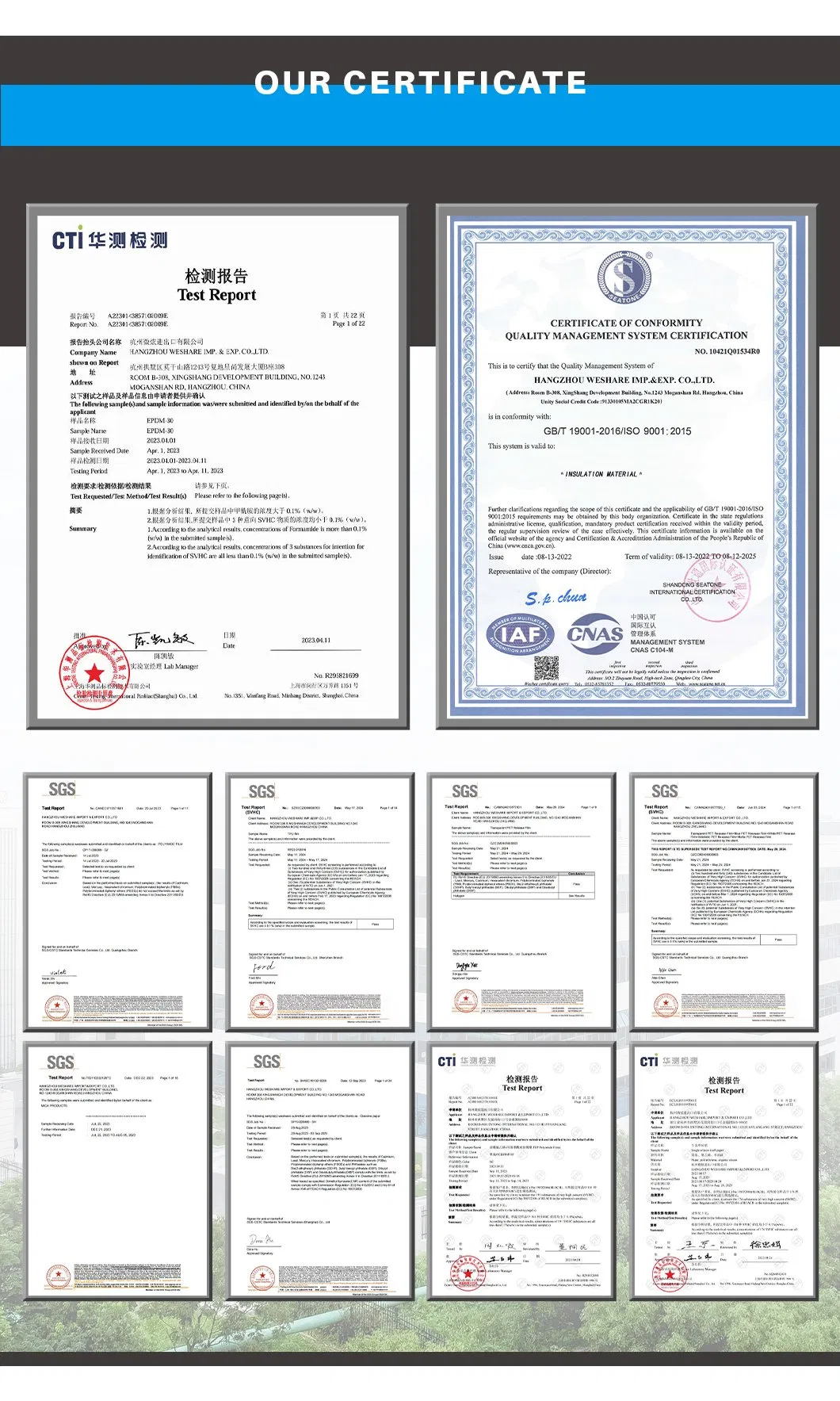

Certifications

Company Profile

Packing

Frequently Asked Questions

What is oriented silicon steel sheet?

Oriented silicon steel sheet, also known as cold-rolled grain-oriented (CRGO) steel, is an alloy of iron and silicon designed to offer low core loss and high magnetic permeability in a specific rolling direction, making it highly efficient for electrical transformer applications.

Why is oriented silicon steel used for transformer cores?

It provides low ferromagnetic loss (core loss) at typical operating frequencies and high magnetic flux density. This helps reduce the no-load loss of transformers, boosting operational efficiency and lowering thermal generation.

What are EI laminations?

EI laminations are punched pieces of silicon steel sheets shaped like the letters "E" and "I". Stacking these pieces creates a closed magnetic path (core), which is used in inductors, small motor devices, and power transformers.

How do I choose the correct EI model specification?

You should select the model according to the dimensional specifications required for your device, specifically focusing on the outer dimensions (A and B), the center tongue width (C), stack height, and the mounting hole (aperture) diameter.

Can you customize sizes and hole placements?

Yes. Various standard models from EI-28 to EI-144 offer different aperture placements and sizes (e.g., 3.2mm, 3.5mm, 4.0mm, or without holes) to ensure optimal installation stability and fit for your hardware requirements.
