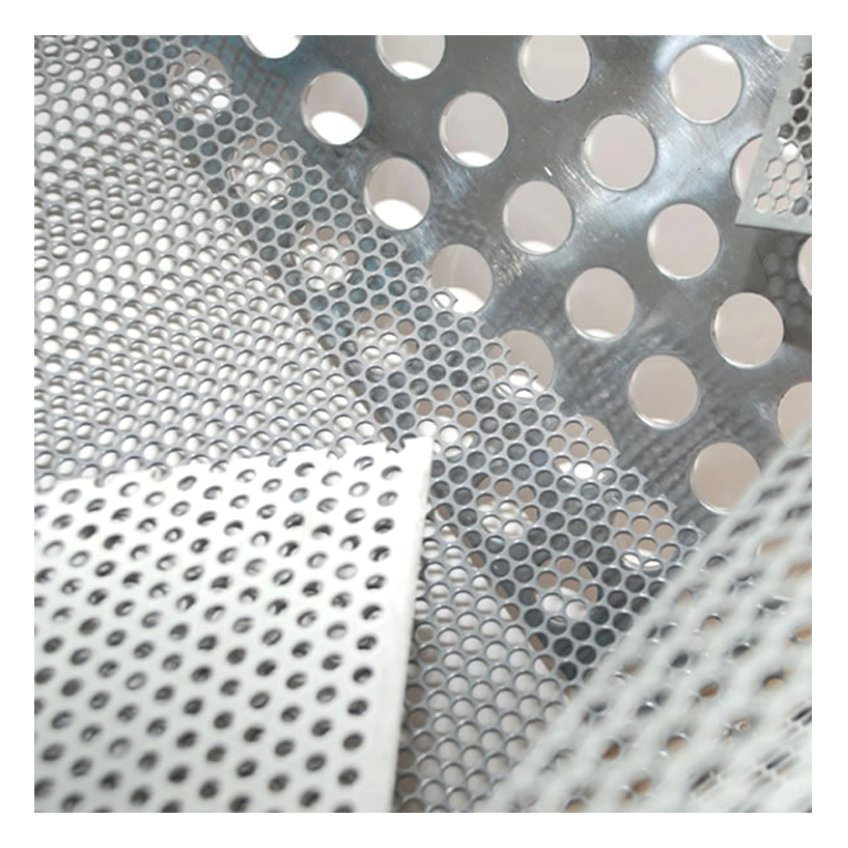

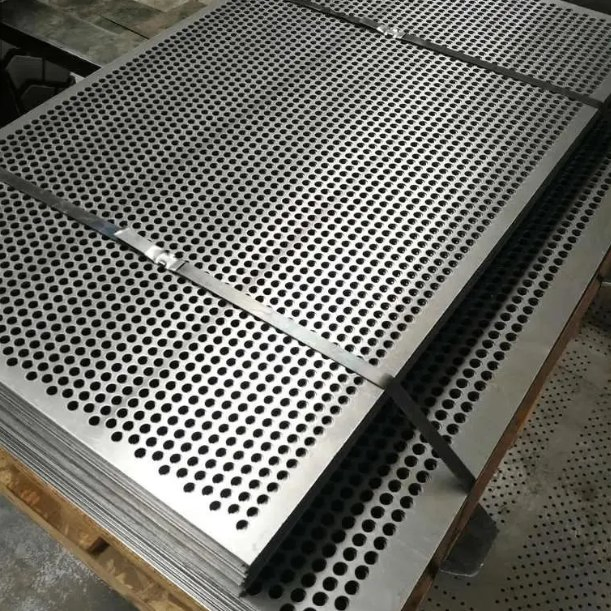

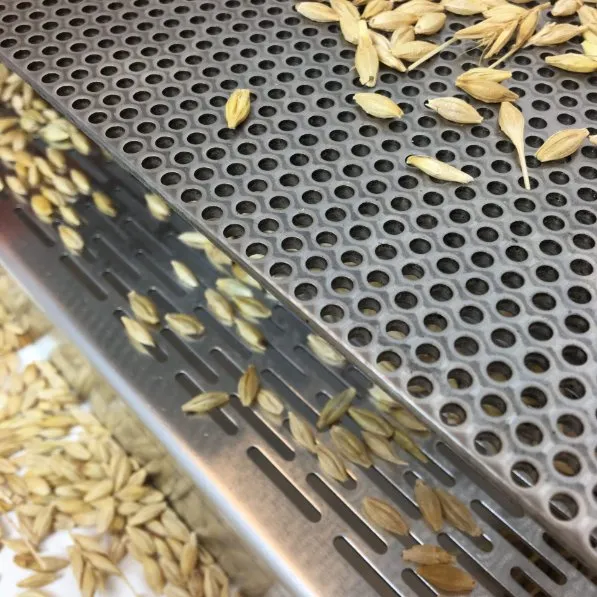

Perforated Metal Sheet is one of the most versatile and stylish metal products in our life, featuring various hole sizes, high strength-to-weight ratio, good ventilation, and light penetration. It is a metal plate with various shapes of holes on the surface. Product applications are widely used in various industries such as pharmaceutical equipment, food and beverage machinery, harvesting machines, dry cleaning machines, sound elimination equipment, refrigeration equipment (central air conditioning) speakers, and filtering equipment.

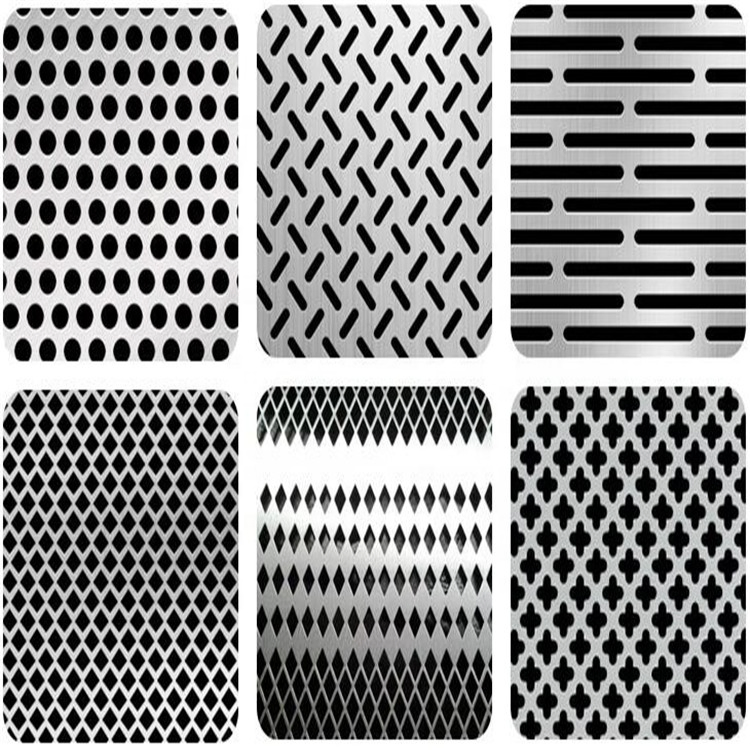

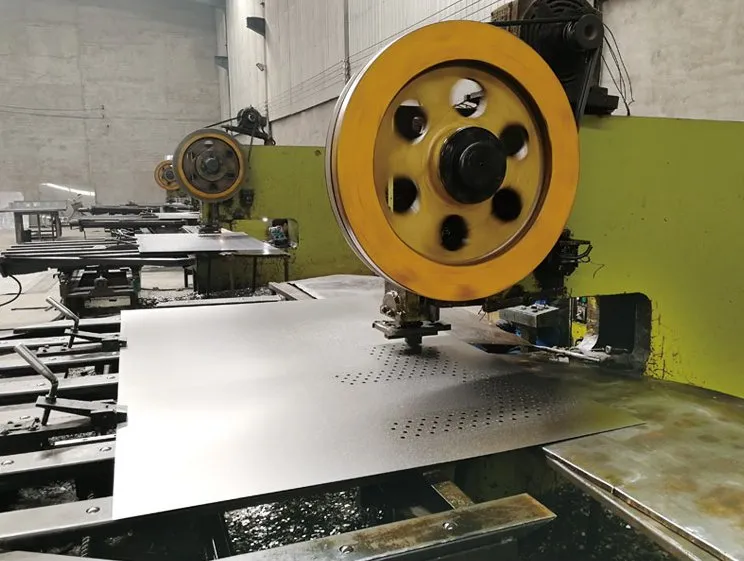

We produce round hole mesh, plum blossom mesh, and other hole types. Options include various hole diameters (generally the hole diameter should be greater than or equal to the plate thickness), mild steel, galvanized, stainless steel punching mesh, and micro hole punching mesh. We provide division of labor, rich production capabilities, and foreign export experience. With various molds available, we can customize production according to your precise requirements.
Made of various aluminum plates that are mechanically perforated, providing noise reduction and a strong decorative effect.

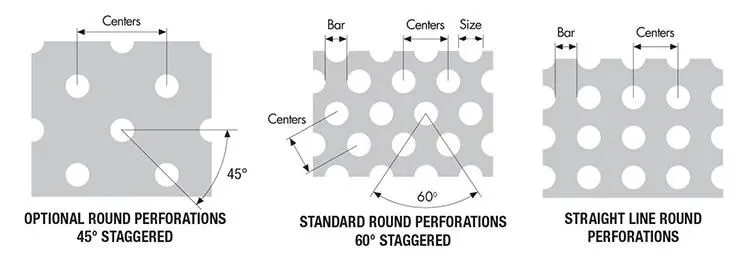

| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
|---|---|---|---|---|---|
| 0.045" | 1.14mm | 0.066" | 0.033-0.039" | 0.84-0.99mm | 0.37 |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 0.41 |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.69mm | 0.23 |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 0.35 |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 0.38 |
| 3/32" | 2.38mm | 5/32" | 0.053-0.066" | 1.35-1.68mm | 0.33 |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 0.4 |
| 5/32" | 3.97mm | 3/16" | 0.027-0.066" | 0.68-1.68mm | 0.63 |
| 3/16" | 4.76mm | ¼" | 0.027-0.127" | 0.68-3.23mm | 0.5 |
| 1/4" | 6.35mm | 3/8" | 0.033-0.111", 0.25" | 0.84-2.82mm, 6.35mm | 0.4 |
| 3/8" | 9.52mm | ½" | 0.053-0.082", 3/16" | 1.35-2.08mm, 4.76mm | 0.51 |
| 3/8" | 9.52mm | 9/16" | 0.059", 0.119" | 1.50mm, 3.02mm | 0.4 |
| 1/2" | 12.70mm | 11/16" | 0.033-0.127", 3/16" | 0.84-3.23mm, 4.76mm | 0.48 |
| 1/4" Hex | 6.35mm Hex | 0.285 | 0.027-0.033 | 0.68-0.84mm | 0.76 |
| 3/8" Sq. | 9.52mm Sq. | Cane | 0.053-0.066" | 1.35-1.68mm | 0.51 |
| Product Name | Perforated Metal Mesh |

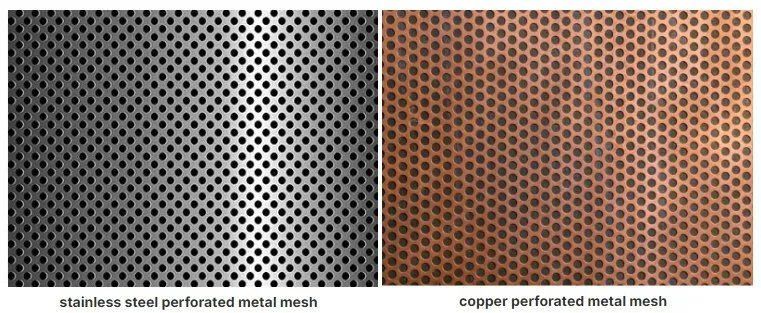

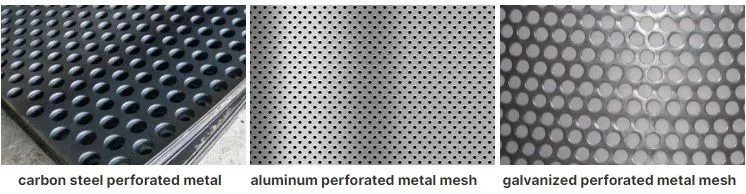

| Material | Stainless Steel, Low Carbon Steel, Aluminum, Galvanized Steel, Copper, Brass, etc. |

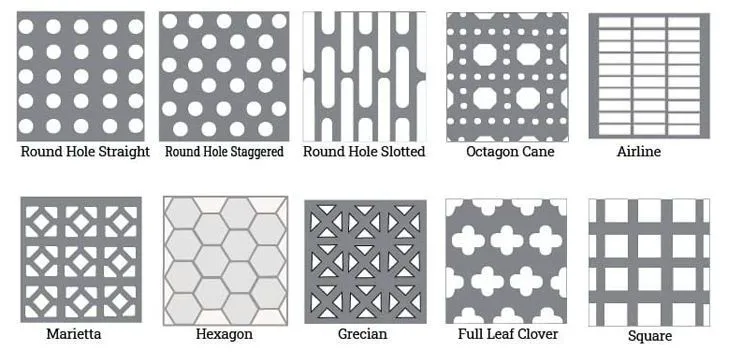

| Hole Patterns | Straight rows, staggered, and arbitrary patterns |
| Thickness | 0.5-10mm |
| Hole Types | Round, rectangular, square, hexagonal, diamond, triangular, irregular hole |
| Size |

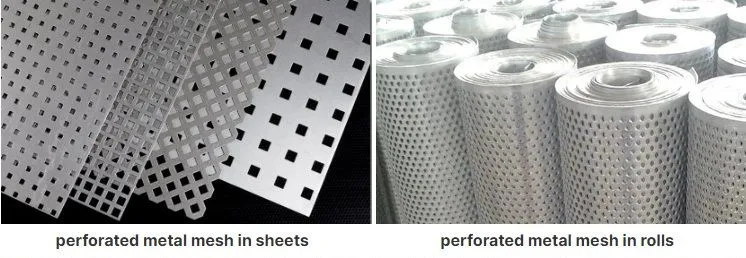

Sheets: 1m×2m, 1.2m×2.4m, 1.22m×2.44m etc. (customizable) Rolls: 1m×20m, 1.2m×20m, 1.5m×20m etc. (customizable) |

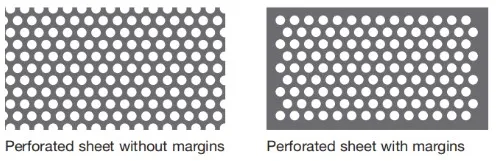

| Margin Types | With or without margins |

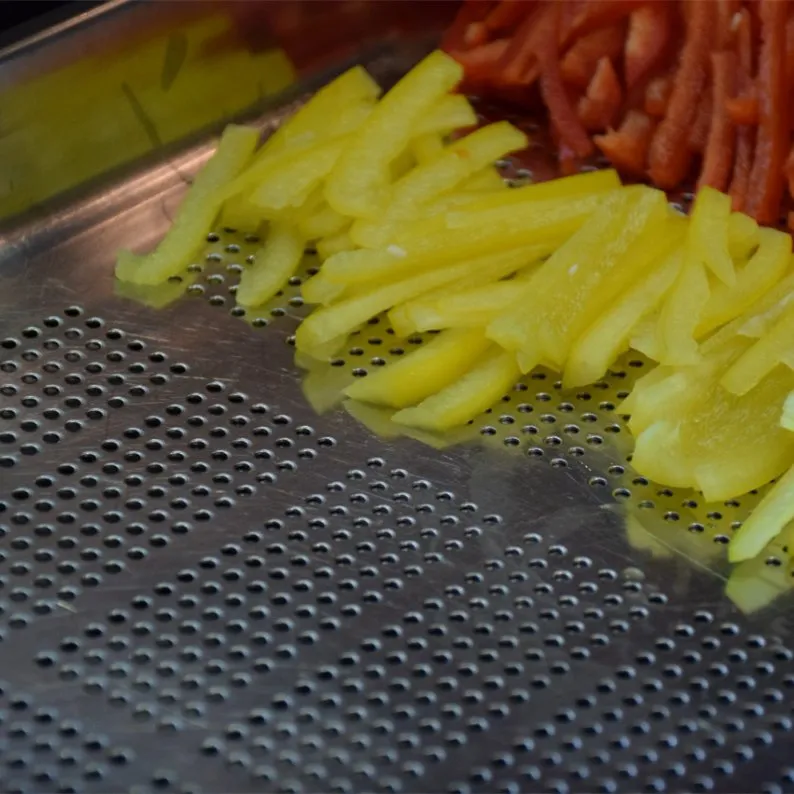

Perforated metal or perforated sheets used in food processing are often manufactured using different types of materials: stainless steel, aluminum, copper, and brass. Stainless steel is widely used because it has many desirable qualities, including thermal properties, corrosion resistance, ease of fabrication, and clean maintenance.

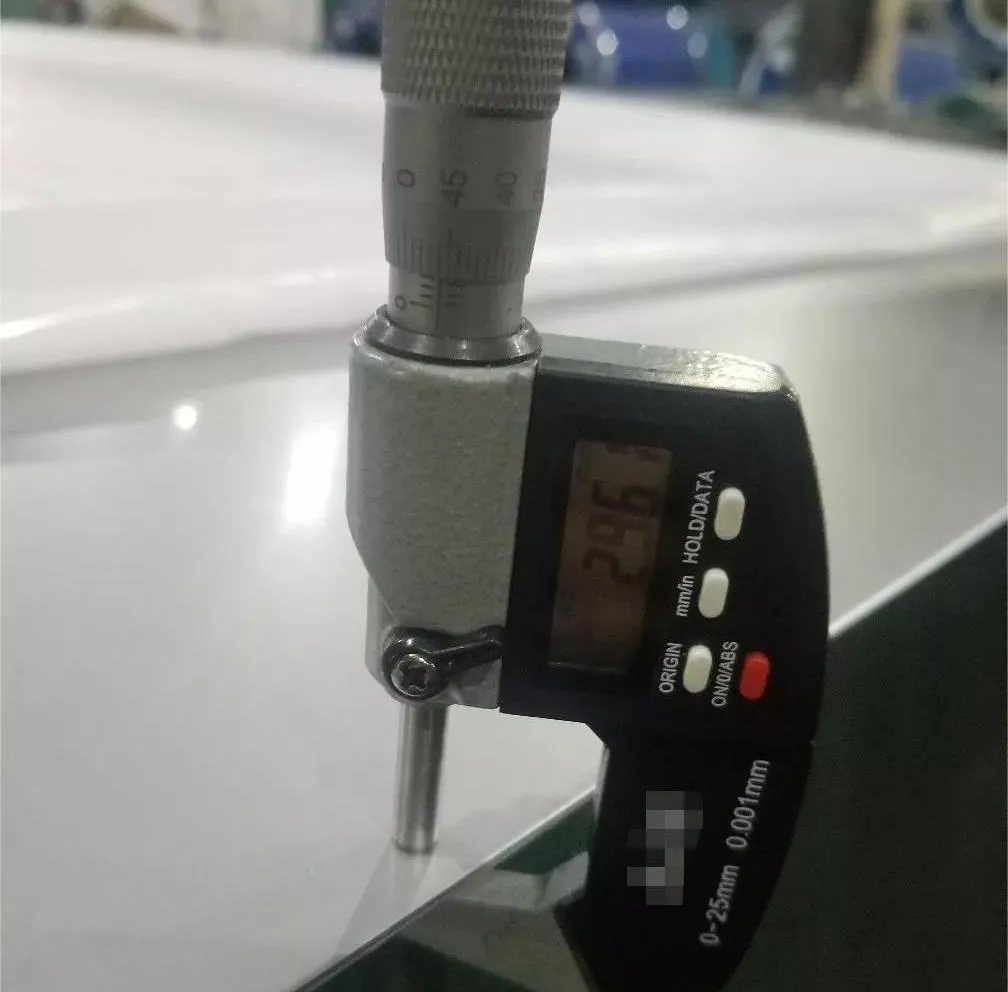

1. Strict Selection: Strictly selected raw materials, guaranteeing no cut corners.

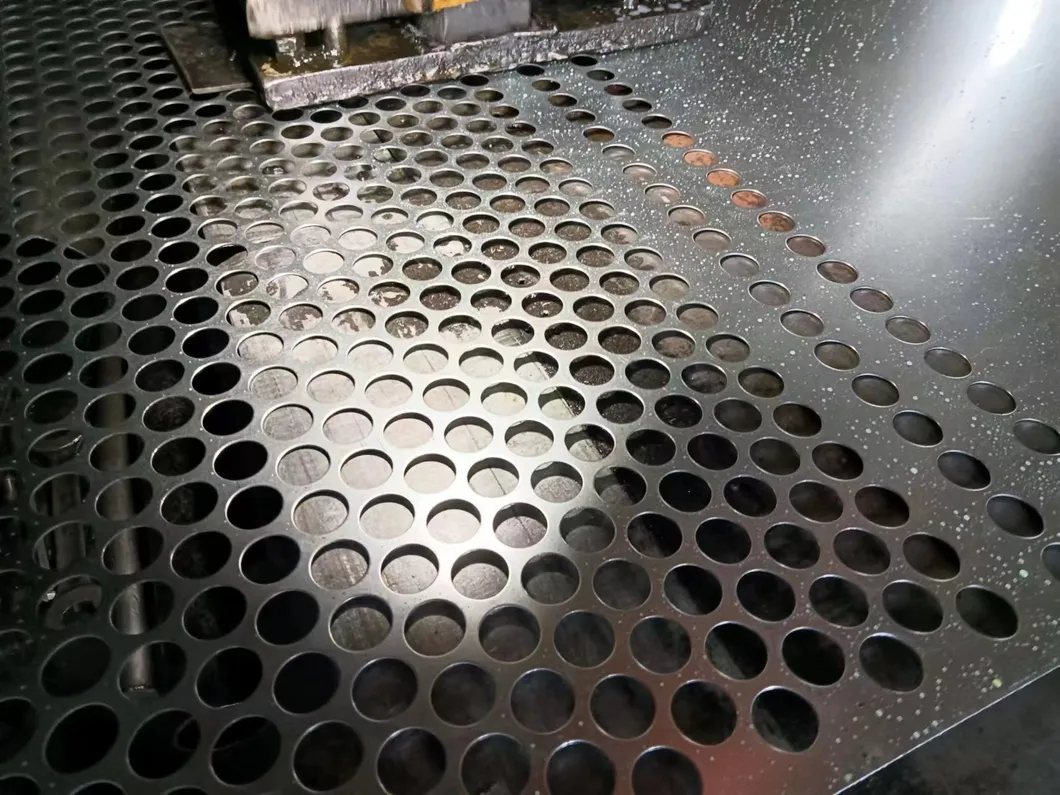

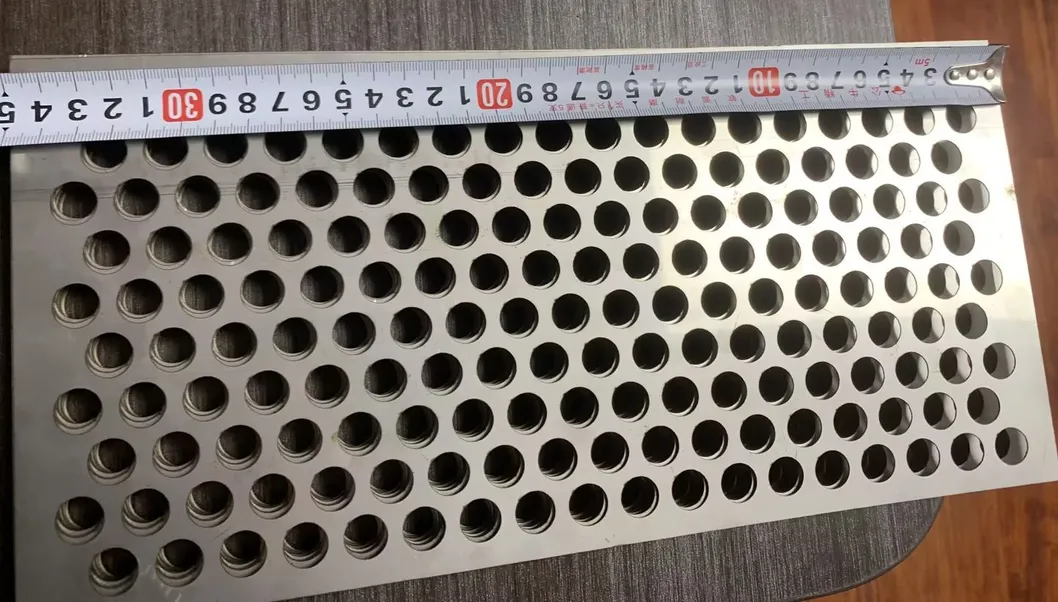

2. Processing Technology: Smooth slices, meticulous workmanship, and strict dimensional control.

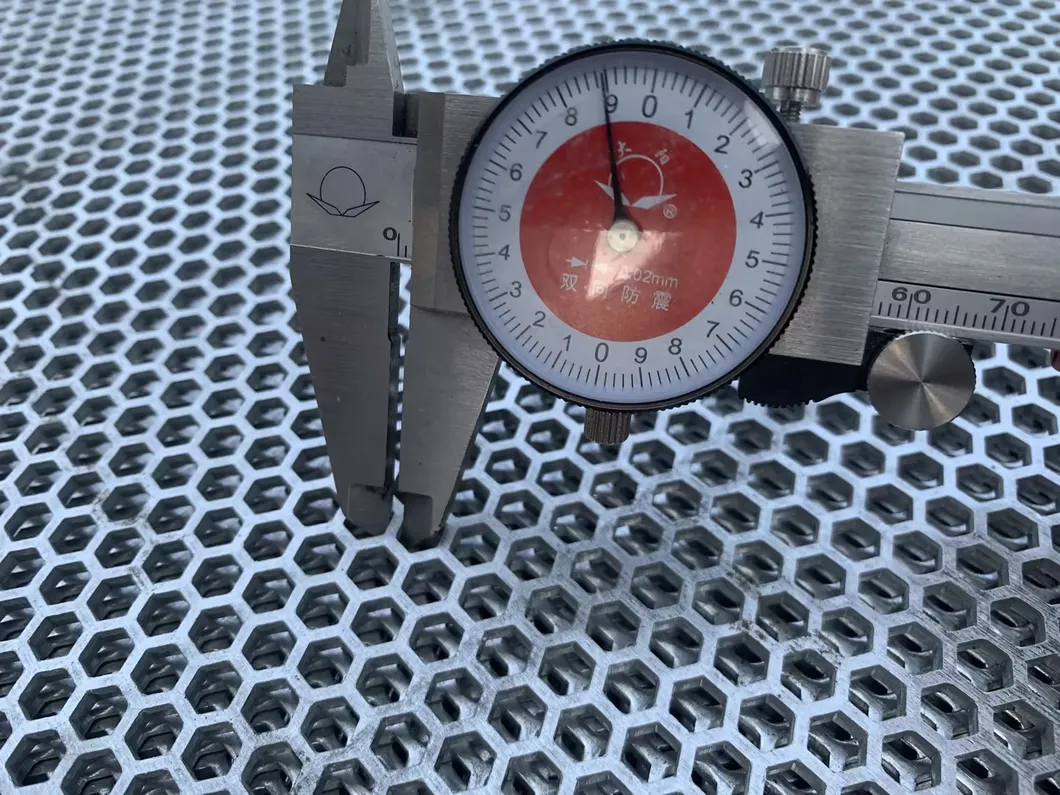

3. Uniform Mesh: Excellent ventilation, flat mesh surface, and sound absorption properties.
4. Customization: Tailored to fit diverse client applications and structures.

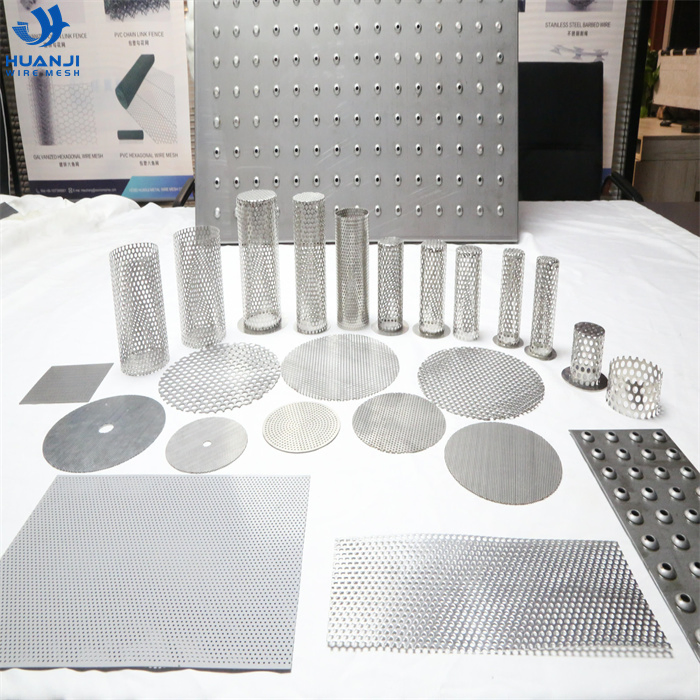

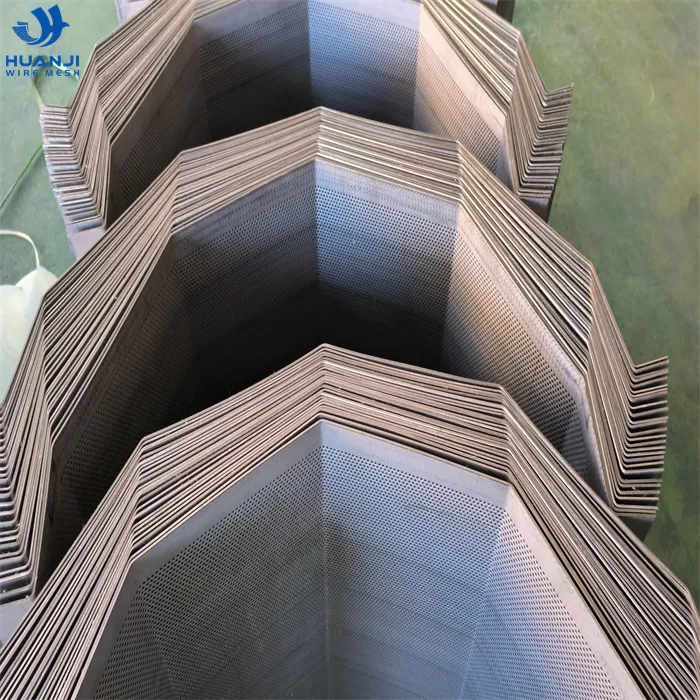

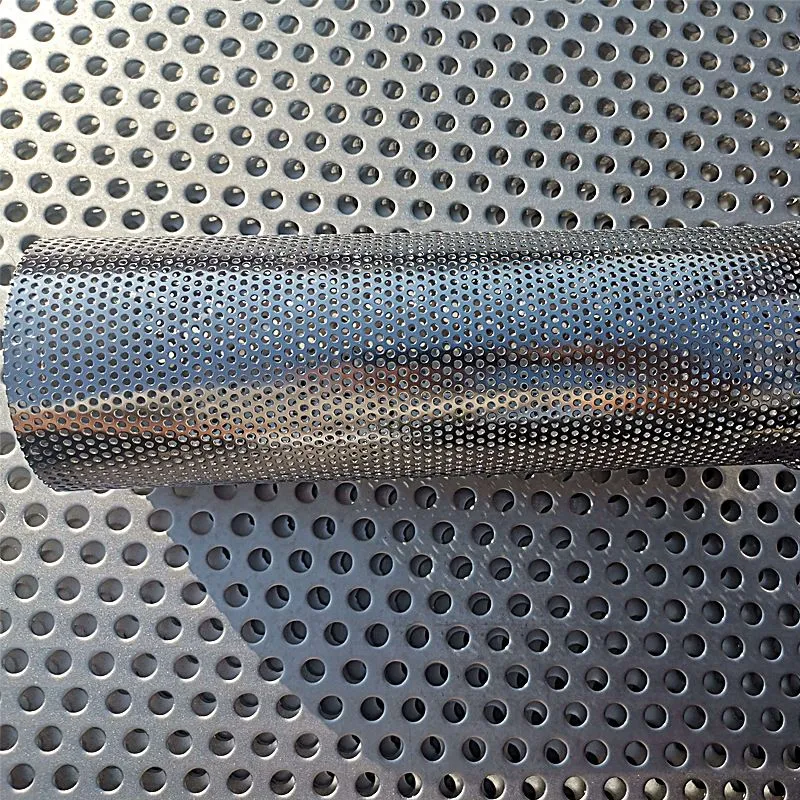

Our structural options include: Bending & Punching Mesh, Filter Cartridges, and specialized Filter Elements.

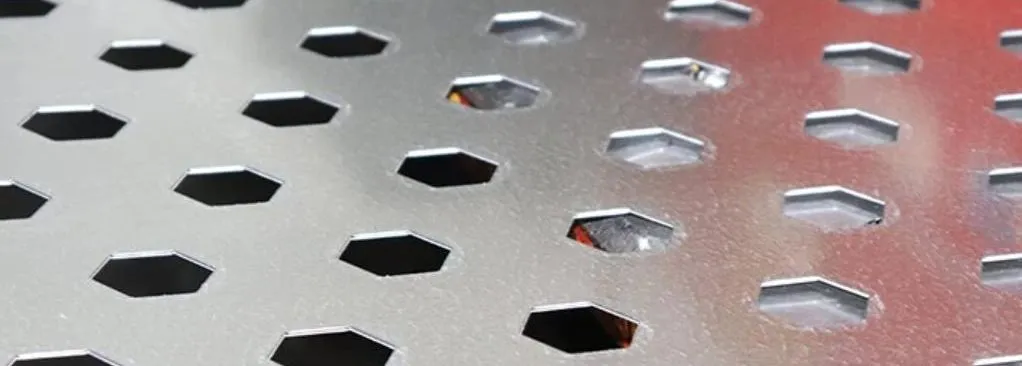

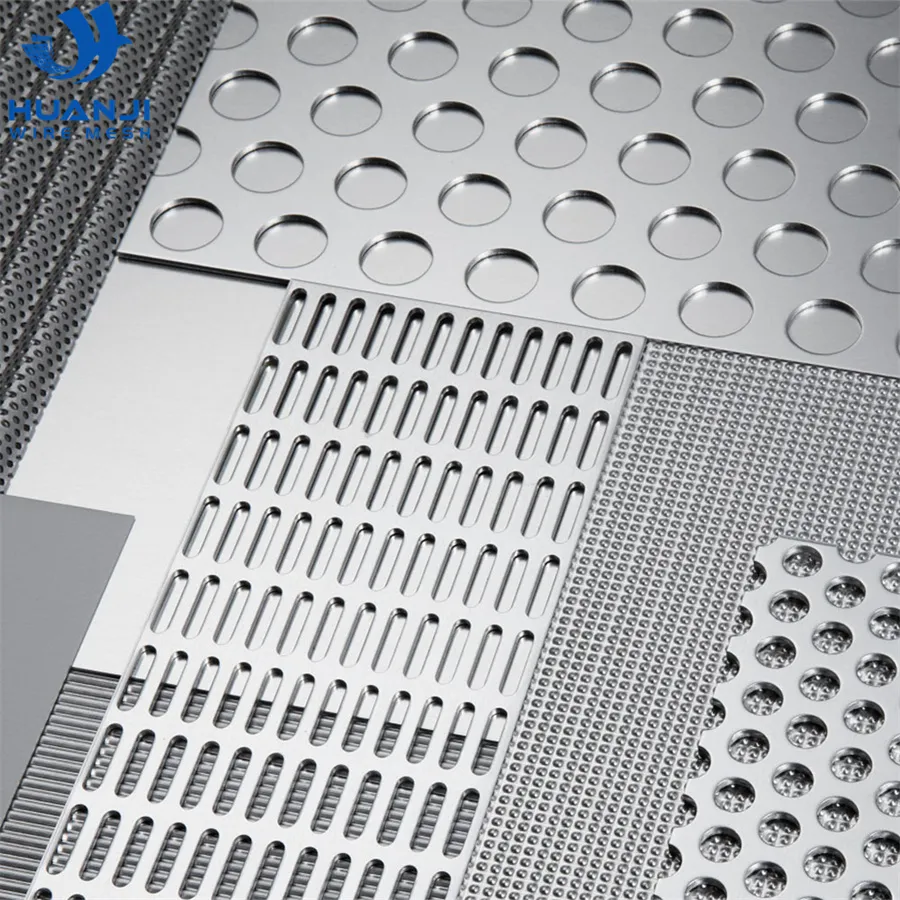

Our perforated metal items are available in standard or custom thicknesses, hole distributions, spacing, and configurations (round, hexagonal, square, or slotted options).

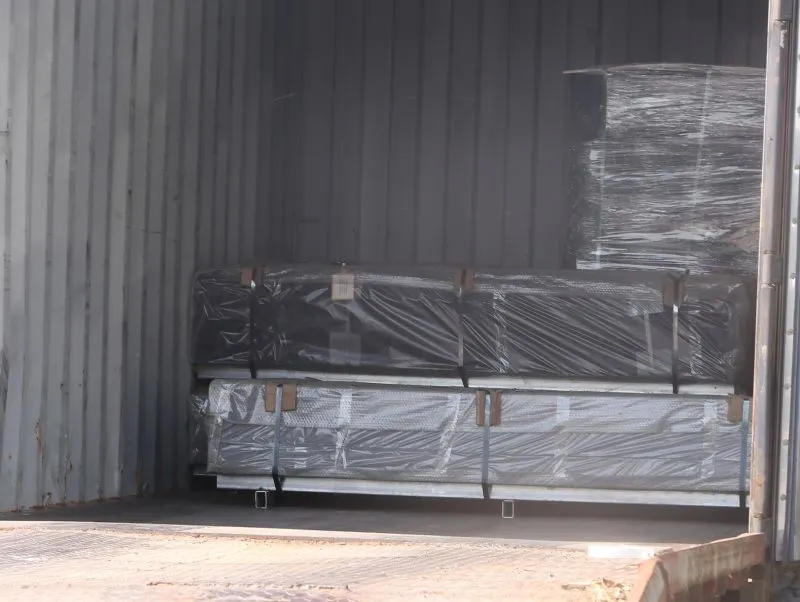

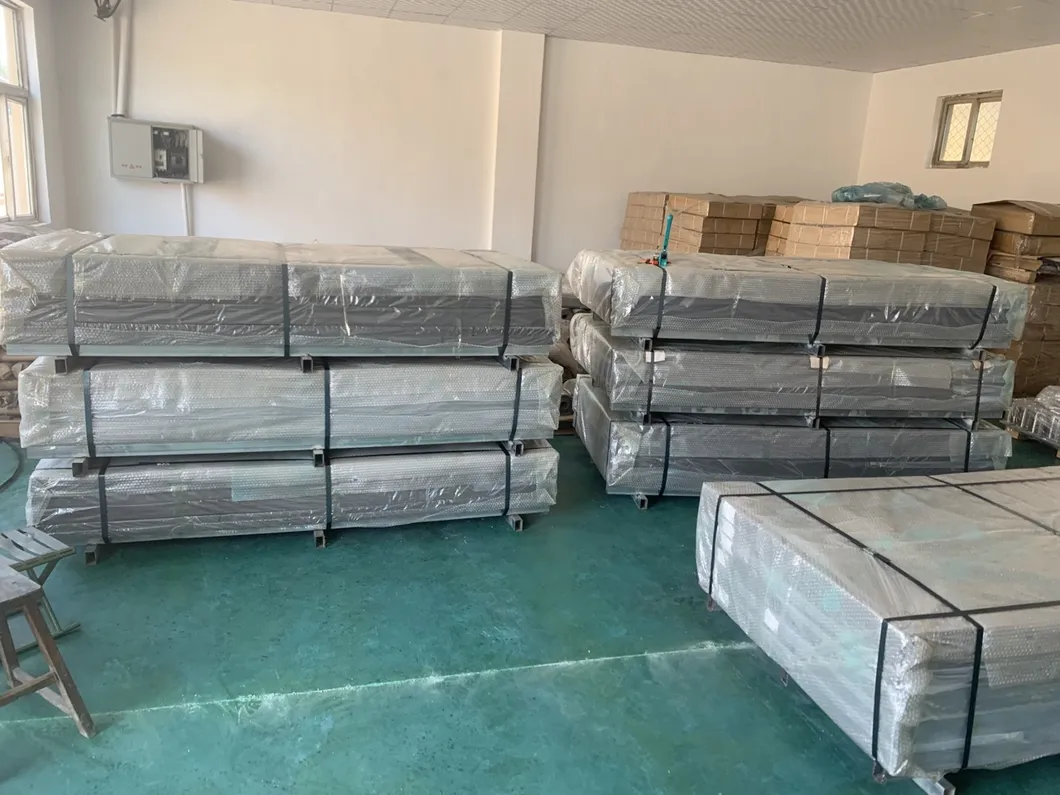

Standard dispatch consists of solid pallet packing featuring exterior plastic wrapping to block moisture and preserve structural integrity. Alternatives include heavy-duty wooden box enclosures. Customized packing arrangements are available upon request.
